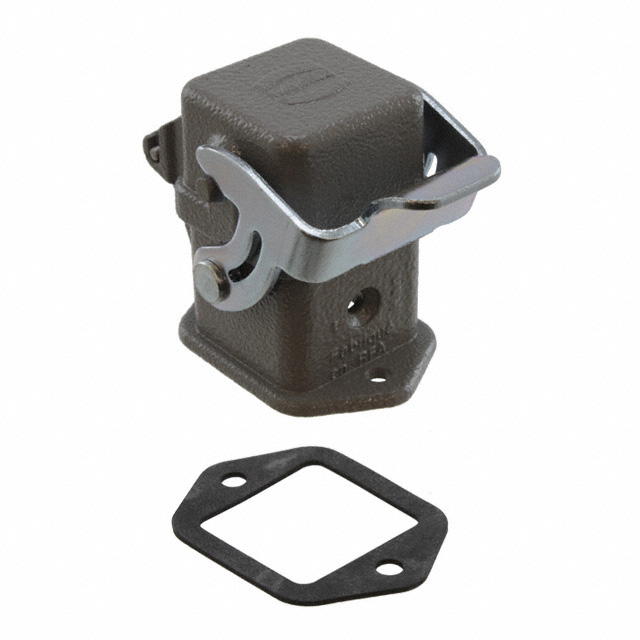

09200030306
Or copy the link below:
- Mfr.Part #
- 09200030306
- Manufacturer
- HARTING
- Package / Case
- 0306
- Datasheet
- Download
- Description
- CONN BASE BOTTOM ENTRY SZ3A
- Stock
- 4,979
- In Stock ：
- 4,979
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- HARTING
- Product Category :
- Heavy Duty Connector Housings, Hoods, Bases
- Connector Support Type :
- CONNECTOR ACCESSORY
- Height :
- 23.0124mm
- Size :
- 3A
- Size / Dimension :
- 1.102Lx1.575W x 0.906 H 28.00mmx40.00mmx23.00mm
- Reach Compliance Code :
- not_compliant
- Factory Lead Time :
- 5 Weeks
- Orientation :
- Straight
- Mount :
- Bulkhead
- Style :
- Bottom Entry
- RoHS Status :
- ROHS3 Compliant
- Series :
- Han® A
- Connector Type :
- Base - Panel Mount
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Lock Location :
- Locking Clip (1) on Base Bottom
- Depth :
- 35mm
- Body Material :
- Metal
- Housing Material :
- Zinc, Die Cast
- REACH SVHC :
- No SVHC
- Packaging :
- Bulk
- Housing Finish :
- Powder Coated
- Ingress Protection :
- IP44
- Package / Case :
- 0306
- Operating Temperature :
- -40°C~125°C
- Datasheets
- 09200030306
5 Weeks CONNECTOR ACCESSORY Bulk Han® A Base - Panel Mount Zinc, Die Cast Bottom Entry Locking Clip (1) on Base Bottom -40°C~125°C
09200030306 Overview
The connector type Base - Panel Mount refers to the connector type.In order to package the product, a Bulk case is used.It belongs to the Han® A Series of products.In the packaging with the 0306, there is a device enclosed in the package.The part is mounted by Bulkhead.The device runs in -40°C~125°C Operating Temperature.
09200030306 Features
Han® A series
09200030306 Applications
There are a lot of HARTING
09200030306 Heavy Duty Connectors applications.
- Industrial Automation
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
