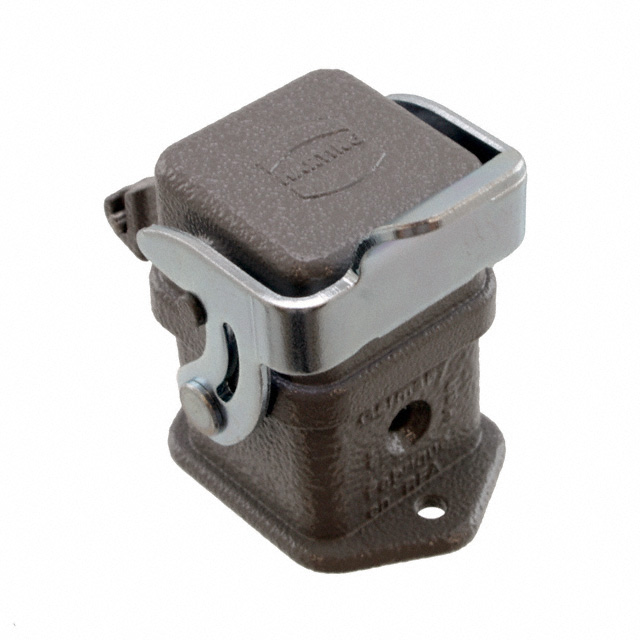

09200030305
Or copy the link below:
- Mfr.Part #
- 09200030305
- Manufacturer
- HARTING
- Package / Case
- Datasheet
- Download
- Description
- CONN BASE BOTTOM ENTRY SZ3A
- Stock
- 11
- In Stock ：
- 11
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- HARTING
- Product Category :
- Heavy Duty Connector Housings, Hoods, Bases
- Connector Type :
- Base - Panel Mount
- Housing Material :
- Zinc, Die Cast
- Mount :
- Bulkhead
- Size / Dimension :
- 1.102Lx1.575W x 0.906 H 28.00mmx40.00mmx23.00mm
- Operating Temperature :
- -40°C~125°C
- Lock Location :
- Locking Clip (1) on Base Bottom
- REACH SVHC :
- No SVHC
- Ingress Protection :
- IP44
- Size :
- 3A
- RoHS Status :
- ROHS3 Compliant
- Style :
- Bottom Entry
- Packaging :
- Bulk
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Connector Support Type :
- CONNECTOR ACCESSORY
- Reach Compliance Code :
- not_compliant
- Orientation :
- Straight
- Housing Finish :
- Powder Coated
- Material :
- Metal
- Height :
- 23.0124mm
- Series :
- Han® A
- Factory Lead Time :
- 5 Weeks
- Datasheets
- 09200030305
5 Weeks CONNECTOR ACCESSORY Bulk Han® A Base - Panel Mount Zinc, Die Cast Bottom Entry Locking Clip (1) on Base Bottom -40°C~125°C
09200030305 Overview
A Base - Panel Mount package is included with it.An Bulk case is utilized for packaging the product.The product is a part of the Han® A Series.By Bulkhead, the part is mounted.Operating temperature is set to -40°C~125°C.
09200030305 Features
Han® A series
09200030305 Applications
There are a lot of HARTING
09200030305 Heavy Duty Connectors applications.
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
