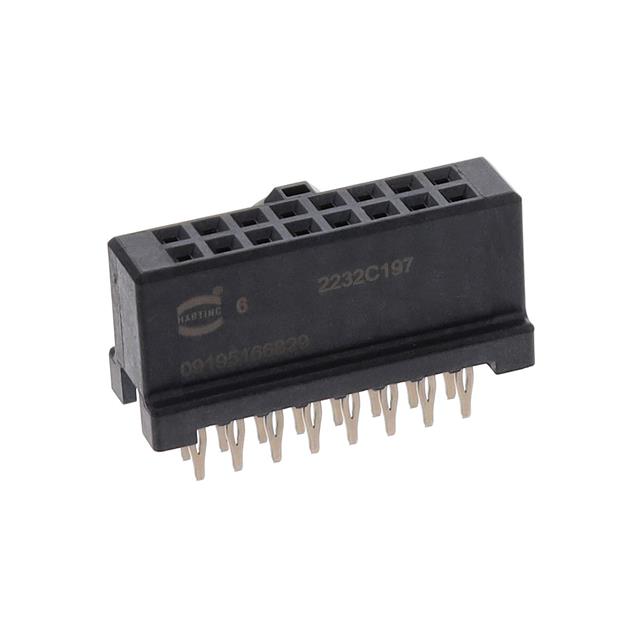

09195166829
Or copy the link below:
- Mfr.Part #
- 09195166829
- Manufacturer
- HARTING
- Package / Case
- Datasheet
- Download
- Description
- SEK/IDC LOW PROFILE STRAIGHT FEM
- Stock
- 100
- In Stock ：
- 100
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- HARTING
- Product Category :
- Headers, Receptacles, Female Sockets
- Fastening Type :
- Push-Pull
- Operating Temperature :
- -55°C ~ 125°C
- Contact Finish Thickness - Post :
- -
- Insulation Material :
- Liquid Crystal Polymer (LCP)
- Product Category :
- Board to Board and Mezzanine Connectors
- Style :
- Board to Board or Cable
- Current Rating (Amps) :
- 1A
- Material Flammability Rating :
- UL94 V-0
- Package :
- Bulk
- Mounting Type :
- Through Hole
- Number of Positions :
- 16
- Insulation Color :
- Black
- Ingress Protection :
- -
- Contact Material :
- COPPER ALLOY
- Termination :
- Press-Fit
- Contact Length - Post :
- 0.177 (4.50mm)
- Series :
- SEK
- Pitch - Mating :
- 0.100 (2.54mm)
- Contact Type :
- Female Socket
- Contact Finish - Mating :
- Gold
- Applications :
- -
- Number of Positions Loaded :
- All
- Contact Shape :
- Square
- Product Status :
- Active
- Product Type :
- Board to Board and Mezzanine Connectors
- Row Spacing - Mating :
- 0.100 (2.54mm)
- Insulation Height :
- 0.455 (11.56mm)
- Subcategory :
- Board to Board and Mezzanine Connectors
- RoHS :
- Details
- Mated Stacking Heights :
- -
- Contact Finish Thickness - Mating :
- -
- Manufacturer :
- HARTING
- Contact Finish - Post :
- Nickel
- Brand :
- HARTING
- Features :
- -
- Voltage Rating :
- -
- Connector Type :
- Receptacle
- Number of Rows :
- 2
- Datasheets
- 09195166829
2 Rows Receptacle Press-Fit Copper Alloy Through Hole Gold Liquid Crystal Polymer (LCP) 16 Positions Female Socket
09195166829 Overview
It comes in Receptacle packaging.The device's mounting type is Through Hole.It belongs to the SEK Series of products.- is a possible application for the device.The device runs in -55°C ~ 125°C Operating Temperature.
09195166829 Features
SEK series
09195166829 Applications
There are a lot of HARTING
09195166829 Rectangular Connectors applications.
- Industrial Automation
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
