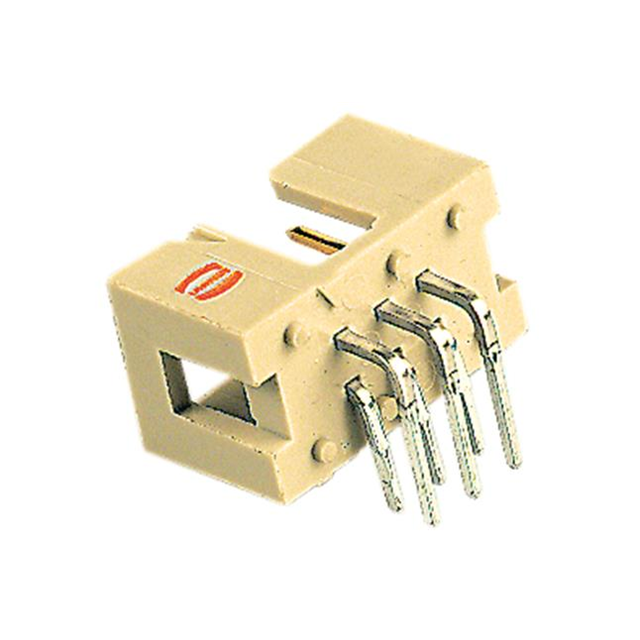

09195166323

Manufacturer :

HARTING

Product Category :

Headers, Male Pins

Connector Type :

Header

Filter Feature :

No

Insulation Color :

Beige

Dielectric Withstanding Voltage :

1000VAC V

Length - Termination :

0.114 inch

Material Flammability Rating :

UL94 V-0

Orientation :

RIGHT ANGLE

Rated Current (Signal) :

1A

IEC Conformance :

yes

Mating Contact Pitch :

0.1 inch

Contact Shape :

Square

Gender :

Male

Number Of PCB Rows :

2

Insulation Resistance :

1000000000Ohm

Number of Positions Loaded :

All

Termination :

Solder

Contact Finish - Mating :

NOT SPECIFIED

Body Length or Diameter :

1.098 inch

Mount :

Through Hole

REACH SVHC :

No SVHC

Row Spacing - Mating :

0.100 (2.54mm)

Mounting Type :

Through Hole, Right Angle

Mixed Contacts :

No

Contact Type :

Male Pin

Pitch - Mating :

0.100 2.54mm

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

PCB Contact Pattern :

RECTANGULAR

Number of Positions :

16

Contact Length - Post :

0.114 2.90mm

Operating Temperature :

-55°C~125°C

Packaging :

Bulk

Reference Standard :

UL

Factory Lead Time :

10 Weeks

Body Depth :

0.48 inch

Contact Length - Mating :

0.240 6.10mm

Series :

SEK

Contact Material :

COPPER ALLOY

UL Flammability Code :

94V-0

RoHS Status :

ROHS3 Compliant

Number of Rows :

2

Shrouding :

Shrouded - 4 Wall

MIL Conformance :

No

DIN Conformance :

yes

Fastening Type :

Latch Holder

Pbfree Code :

yes

Polarization Key :

CTR W/GUIDE SLOTS

Feature :

Keying Slot

Reliability :

COMMERCIAL

Option :

GENERAL PURPOSE

Number of Conductors :

ONE

Insulation Height :

0.366 9.30mm

Style :

Board to Cable/Wire

Current Rating :

2A

Insulation Material :

Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled
