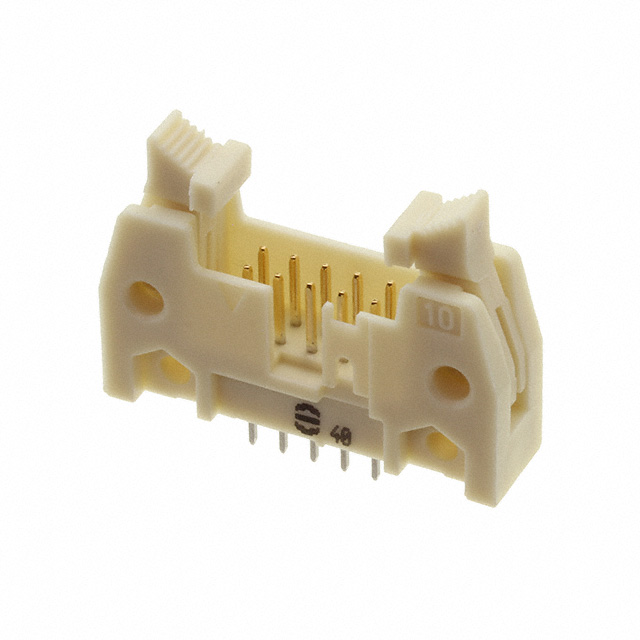

09195106914

Manufacturer :

HARTING

Product Category :

Headers, Male Pins

Connector Type :

Header

Packaging :

Bulk

Pitch - Mating :

0.100 2.54mm

PCB Contact Pattern :

RECTANGULAR

Additional Feature :

STANDARDS: IEC 60603-13; DIN EN 60603-13

Factory Lead Time :

7 Weeks

Operating Temperature :

-55°C~125°C

Contact Type :

Male Pin

Contact Finish - Mating :

NOT SPECIFIED

UL Flammability Code :

94V-0

Number Of PCB Rows :

2

Contact Material :

COPPER ALLOY

Row Spacing - Mating :

0.100 (2.54mm)

Contact Length - Mating :

0.228 5.80mm

Insulation Material :

Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled

Contact Length - Post :

0.114 2.90mm

Feature :

Keying Slot, Mounting Flange

Mating Contact Pitch :

0.1 inch

Contact Shape :

Square

Mount :

Through Hole

Overall Contact Length :

0.650 16.51mm

Filter Feature :

No

Number of Conductors :

ONE

Length - Termination :

0.114 inch

DIN Conformance :

yes

Option :

GENERAL PURPOSE

Insulation Height :

0.681 17.30mm

Reliability :

COMMERCIAL

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

MIL Conformance :

No

Shrouding :

Shrouded - 4 Wall

Style :

Board to Cable/Wire

Body Breadth :

0.335 inch

Pbfree Code :

yes

Material Flammability Rating :

UL94 V-0

Number of Rows :

2

IEC Conformance :

yes

Mounting Type :

Through Hole

Fastening Type :

Latch Lock/Eject Hooks, Short

Number of Positions :

10

Number of Positions Loaded :

All

Insulation Color :

Beige

Contact Finish - Post :

Tin

Rated Current (Signal) :

2A

Mixed Contacts :

No

Orientation :

Straight

Reference Standard :

UL

RoHS Status :

ROHS3 Compliant

Body Depth :

0.681 inch

Polarization Key :

POLARIZED HOUSING

Termination :

Solder

Series :

SEK
