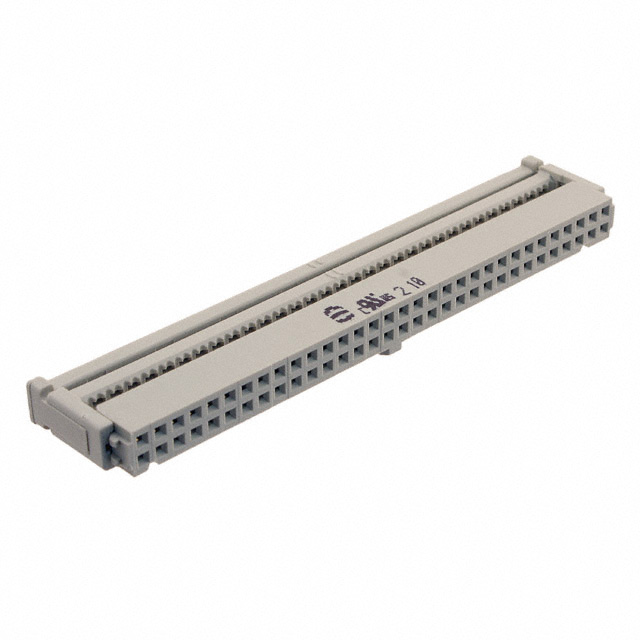

09185647813

Manufacturer :

HARTING

Product Category :

Free Hanging, Panel Mount

Number of Poles :

64

Factory Lead Time :

4 Weeks

Contact Type :

Female Socket

Contact Resistance :

20mOhm

Insulation Material :

PBTP 30% FIBRE ENHANCED

Durability :

50 Cycles

Insulation Resistance :

1GOhm

Rated Current (Signal) :

2A

Voltage - Rated AC :

350V

Wire Gauge (Min) :

26 AWG

Number of Rows :

2

Option :

GENERAL PURPOSE

Total Number of Contacts :

64

Series :

SEK

Contact Plating :

Gold

IEC Conformance :

yes

Mounting Type :

Free Hanging (In-Line)

DIN Conformance :

yes

Wire/Cable Type :

Ribbon

Contact Finish - Mating :

NOT SPECIFIED

Color :

Grey

Body/Shell Style :

PLUG

Additional Feature :

STANDARD: IEC 60603-13; DIN EN 60603-13, POLARIZED

Orientation :

RIGHT ANGLE

Contact Design :

PREASSEM CONN

Mount :

Cable, Free Hanging

Wire Type :

Ribbon Cable

Packaging :

Bulk

Connector Type :

Receptacle

Termination :

IDT

Wire Gauge (Max) :

28 AWG

UL Flammability Code :

94V-0

Contact Material :

Brass

Row Spacing :

0.100 (2.54mm)

Wire Gauge :

26-28 AWG

Lead Pitch :

2.54mm

Reference Standard :

UL

Length :

85.9mm

RoHS Status :

ROHS3 Compliant

Voltage - Rated DC :

350V

Cable Termination :

IDC

Reliability :

COMMERCIAL

Pitch :

0.100 2.54mm

ECCN Code :

EAR99

Pbfree Code :

yes

Polarization Key :

CENTER

Flammability Rating :

UL94 V-0

Contact Current Rating :

1A

Min Operating Temperature :

-40°C

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Feature :

Feed Through, Polarizing Key, Strain Relief

Max Operating Temperature :

105°C

REACH SVHC :

No SVHC

HTS Code :

8536.69.40.40

MIL Conformance :

No

Filter Feature :

No

Mixed Contacts :

No

Depth :

7.2mm
