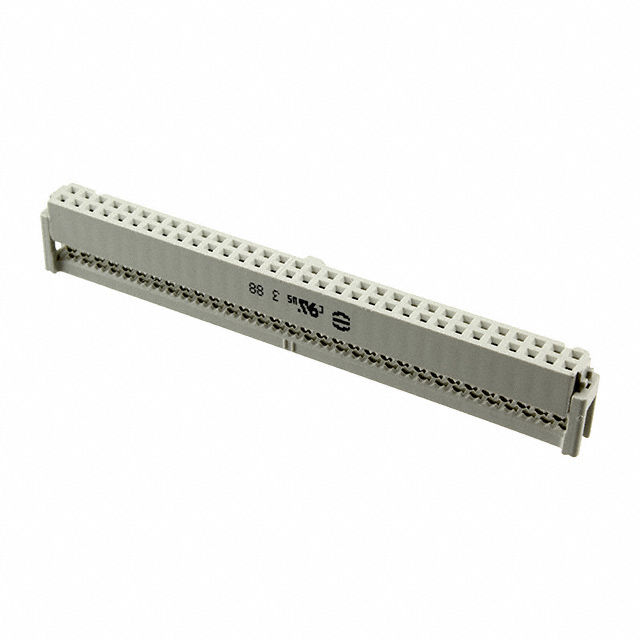

09185647803

Manufacturer :

HARTING

Product Category :

Free Hanging, Panel Mount

Additional Feature :

STANDARD: IEC 60603-13; DIN EN 60603-13, POLARIZED

Contact Finish - Mating :

NOT SPECIFIED

Termination Type :

IDC

Mounting Type :

Free Hanging (In-Line)

Number of Rows :

2

Contact Gender :

FEMALE

Contact Material :

Brass

Feature :

Feed Through, Polarizing Key

Reliability :

COMMERCIAL

Contact Resistance :

20mOhm

MIL Conformance :

No

Flammability Rating :

UL94 V-0

Number of Positions :

64

Insulation Material :

PBTP 30% FIBRE ENHANCED

Option :

GENERAL PURPOSE

Total Number of Contacts :

64

DIN Conformance :

yes

Packaging :

Bulk

Cable Termination :

IDC

Row Spacing :

0.100 (2.54mm)

Current Rating :

2A

Lead Pitch :

2.54mm

HTS Code :

8536.69.40.40

Wire Gauge (Min) :

26 AWG

UL Flammability Code :

94V-0

Pbfree Code :

yes

Insulation Resistance :

1GOhm

Mixed Contacts :

No

Reference Standard :

UL

Polarization Key :

CENTER

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

IEC Conformance :

yes

Rated Current (Signal) :

2A

REACH SVHC :

No SVHC

Voltage - Rated AC :

350V

Orientation :

RIGHT ANGLE

Filter Feature :

No

Durability :

50 Cycles

ECCN Code :

EAR99

Operating Temperature (Min) :

-55°C

Wire Type :

Ribbon Cable

Contact Plating :

Gold

Voltage - Rated DC :

350V

Wire Gauge (Max) :

28 AWG

Wire/Cable Type :

Ribbon

Connector Type :

Receptacle

Series :

SEK

RoHS Status :

ROHS3 Compliant

Factory Lead Time :

7 Weeks

Contact Type :

Female Socket

Wire Gauge :

26-28 AWG

Pitch :

0.100 2.54mm

Mount :

Cable, Free Hanging

Color :

Grey

Body/Shell Style :

PLUG
