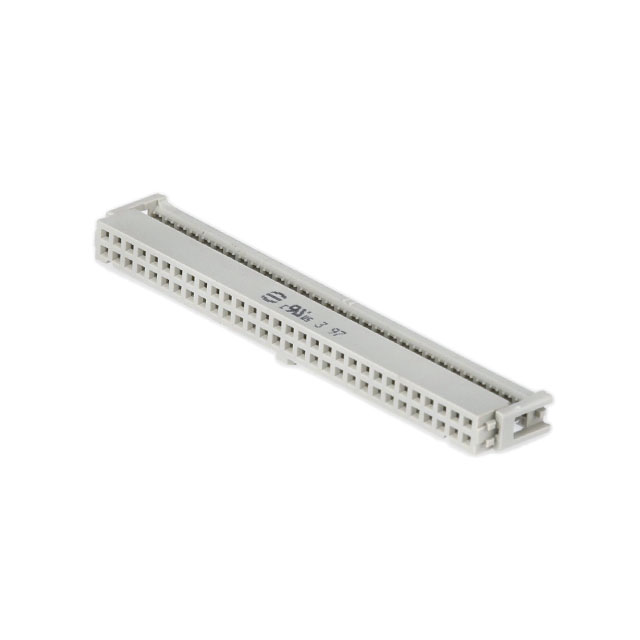

09185607803

Manufacturer :

HARTING

Product Category :

Free Hanging, Panel Mount

RoHS Status :

ROHS3 Compliant

Total Number of Contacts :

60

Contact Type :

Female Socket

Color :

Grey

Mount :

Cable, Free Hanging

Insulation Resistance :

1GOhm

Min Operating Temperature :

-40°C

Mounting Type :

Free Hanging (In-Line)

Contact Plating :

Gold

MIL Conformance :

No

Voltage - Rated DC :

350V

Contact Current Rating :

1A

Number of Rows :

2

Filter Feature :

No

Body/Shell Style :

PLUG

REACH SVHC :

No SVHC

Feature :

Feed Through, Polarizing Key

Packaging :

Bulk

Series :

SEK

Insulation Material :

PBTP 30% FIBRE ENHANCED

Rated Current (Signal) :

2A

Wire Gauge :

26-28 AWG

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Option :

GENERAL PURPOSE

Contact Finish - Mating :

NOT SPECIFIED

Pitch :

0.100 2.54mm

Voltage - Rated AC :

350V

Termination :

IDT

Reliability :

COMMERCIAL

Mixed Contacts :

No

Wire Gauge (Max) :

28 AWG

Pbfree Code :

yes

Contact Material :

Brass

Length :

80.8mm

Depth :

7.2mm

Cable Termination :

IDC

Reference Standard :

UL

Contact Resistance :

20mOhm

IEC Conformance :

yes

UL Flammability Code :

94V-0

Factory Lead Time :

7 Weeks

Wire Gauge (Min) :

26 AWG

DIN Conformance :

yes

Max Operating Temperature :

105°C

Contact Gender :

FEMALE

Wire/Cable Type :

Ribbon

Number of Poles :

60

Wire Type :

Ribbon Cable

Lead Pitch :

2.54mm

Polarization Key :

CENTER

Connector Type :

Receptacle

Orientation :

RIGHT ANGLE

Flammability Rating :

UL94 V-0

Current Rating :

2A

Durability :

50 Cycles

Row Spacing :

0.100 (2.54mm)
