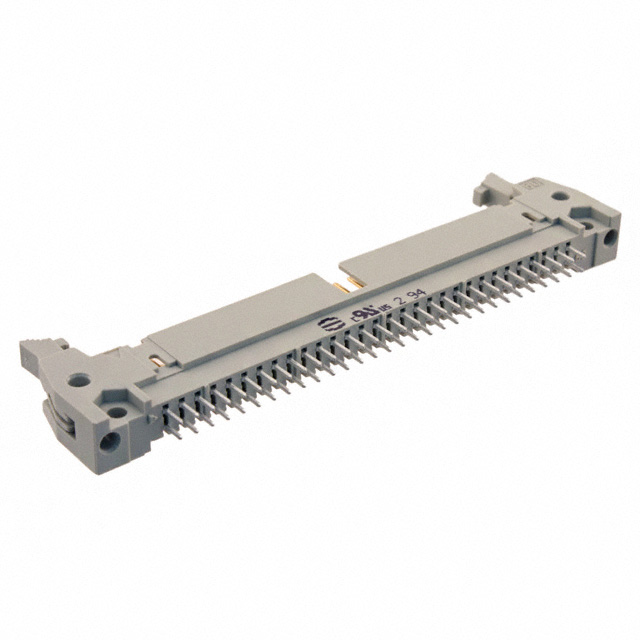

09185606904

Manufacturer :

HARTING

Product Category :

Headers, Male Pins

IEC Conformance :

No

Reliability :

COMMERCIAL

Contact Plating :

Gold

Contact Finish - Post :

Tin

Pbfree Code :

yes

Pitch - Mating :

0.100 2.54mm

Orientation :

Straight

Option :

GENERAL PURPOSE

Insulation Resistance :

1000000000Ohm

Number of Rows :

2

Factory Lead Time :

4 Weeks

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

ECCN Code :

EAR99

Dielectric Withstanding Voltage :

1000VAC V

Number Of PCB Rows :

2

Contact Shape :

Square

Number of Positions :

60

Insulation Color :

Gray

Mounting Type :

Through Hole

Overall Contact Length :

0.650 16.51mm

MIL Conformance :

No

HTS Code :

8536.69.40.40

Fastening Type :

Latch Lock/Eject Hooks, Long

Packaging :

Bulk

Series :

SEK

DIN Conformance :

No

Contact Finish - Mating :

NOT SPECIFIED

Row Spacing - Mating :

0.100 (2.54mm)

Insulation Material :

Polybutylene Terephthalate (PBT), Glass Filled

Mating Contact Pitch :

0.1 inch

Reference Standard :

UL

Rated Current (Signal) :

1A

Gender :

Male

Contact Material :

COPPER ALLOY

REACH SVHC :

No SVHC

Mixed Contacts :

No

Insulation Height :

0.681 17.30mm

RoHS Status :

ROHS3 Compliant

Body Breadth :

0.331 inch

PCB Contact Pattern :

RECTANGULAR

Depth :

8.5mm

Termination :

Solder

Number of Conductors :

ONE

Feature :

Keying Slot, Mounting Flange

Mount :

Through Hole

Polarization Key :

CTR W/GUIDE SLOTS

Style :

Board to Cable/Wire

Contact Length - Post :

0.114 2.90mm

Number of Positions Loaded :

All

Contact Length - Mating :

0.228 5.80mm

Filter Feature :

No

Connector Type :

Header

Material Flammability Rating :

UL94 V-0

Shrouding :

Shrouded - 4 Wall

UL Flammability Code :

94V-0

Length :

95.8mm

Operating Temperature :

-55°C~125°C

Contact Type :

Male Pin
