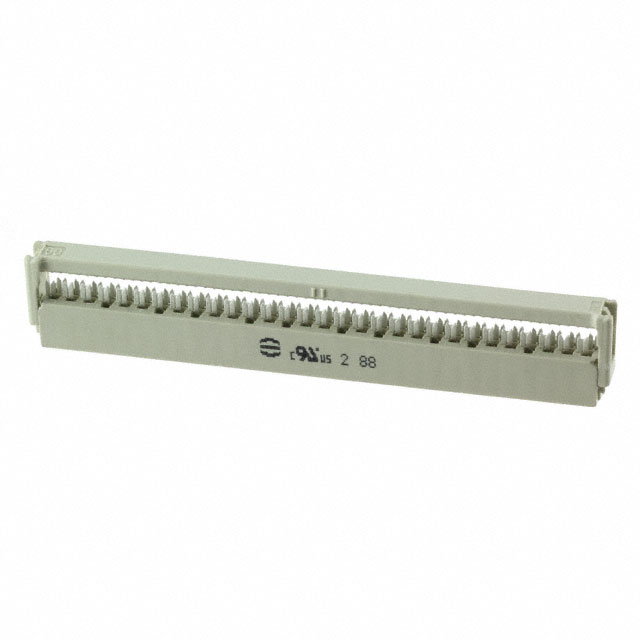

09185606803

Manufacturer :

HARTING

Product Category :

Free Hanging, Panel Mount

Operating Temperature (Min) :

-55°C

Factory Lead Time :

4 Weeks

Cable Termination :

IDC

Orientation :

RIGHT ANGLE

Wire Gauge (Max) :

28 AWG

UL Flammability Code :

94V-0

Termination :

IDT

Insulation Resistance :

1000000000Ohm

Contact Design :

PREASSEM CONN

Rated Current (Signal) :

2A

Body Length or Diameter :

3.181 inch

Connector Type :

Receptacle

DIN Conformance :

yes

ECCN Code :

EAR99

Insulation Material :

PBTP 30% FIBRE ENHANCED

Contact Material :

Copper

Number of Positions :

60

Wire Gauge (Min) :

26 AWG

Wire Type :

Ribbon Cable

HTS Code :

8536.69.40.40

REACH SVHC :

No SVHC

Series :

SEK

IEC Conformance :

yes

Reference Standard :

UL

Body/Shell Style :

PLUG

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Polarization Key :

CENTER

Mounting Type :

Free Hanging (In-Line)

Mount :

Cable, Free Hanging

Pbfree Code :

yes

Option :

GENERAL PURPOSE

Row Spacing :

0.100 (2.54mm)

Mixed Contacts :

No

Pitch :

0.100 2.54mm

Wire Gauge :

26-28 AWG

Wire/Cable Type :

Ribbon

Filter Feature :

No

Number of Rows :

2

Packaging :

Bulk

Contact Type :

Female Socket

Contact Finish - Mating :

NOT SPECIFIED

MIL Conformance :

No

Total Number of Contacts :

60

Feature :

Feed Through, Polarizing Key

Reliability :

COMMERCIAL

RoHS Status :

ROHS3 Compliant
