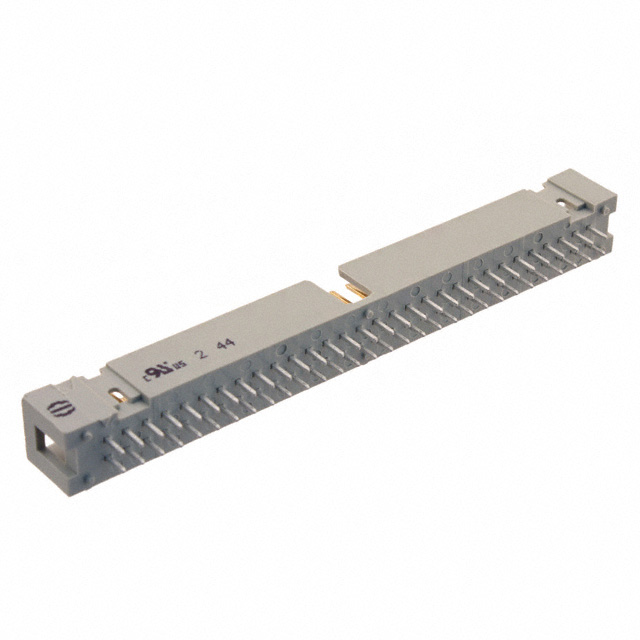

09185606324

Manufacturer :

HARTING

Product Category :

Headers, Male Pins

Number of Positions :

60

Contact Finish - Post :

Tin

RoHS Status :

ROHS3 Compliant

Connector Type :

Header

Depth :

9.2mm

Test Voltage :

1kV

Contact Length - Post :

0.114 2.90mm

Polarization Key :

POLARIZED HOUSING

Style :

Board to Cable/Wire

UL Flammability Code :

94V-0

Series :

SEK

Rated Current (Signal) :

2A

Mounting Type :

Through Hole

Feature :

Keying Slot

Height :

12.35mm

Contact Plating :

Gold

Insulation Resistance :

1000000000Ohm

Width :

84.2mm

Shrouding :

Shrouded - 4 Wall

Reference Standard :

UL

Pbfree Code :

yes

Option :

GENERAL PURPOSE

Body Breadth :

0.366 inch

REACH SVHC :

No SVHC

Contact Length - Mating :

0.240 6.10mm

Fastening Type :

Latch Holder

Number Of PCB Rows :

2

Current Rating :

2A

Orientation :

Straight

Insulation Material :

Polybutylene Terephthalate (PBT), Glass Filled

DIN Conformance :

yes

Contact Finish - Mating :

NOT SPECIFIED

Contact Shape :

Square

Material Flammability Rating :

UL94 V-0

Operating Temperature :

-55°C~125°C

Row Spacing - Mating :

0.100 (2.54mm)

Insulation Color :

Gray

Pitch - Mating :

0.100 2.54mm

Mount :

Through Hole

Length :

84.02mm

Mixed Contacts :

No

Filter Feature :

No

Factory Lead Time :

7 Weeks

MIL Conformance :

No

Reliability :

COMMERCIAL

Contact Type :

Male Pin

Number of Rows :

2

Contact Material :

COPPER ALLOY

Insulation Height :

0.350 8.89mm

PCB Contact Pattern :

RECTANGULAR

Number of Positions Loaded :

All

IEC Conformance :

yes

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Housing Material :

Polyester

Number of Conductors :

ONE

Packaging :

Bulk

Contact Gender :

Male

Color :

Grey

Termination :

Solder

Lead Length :

29mm

Mating Contact Pitch :

0.1 inch
