09185507913
Or copy the link below:
- Mfr.Part #
- 09185507913
- Manufacturer
- HARTING
- Package / Case
- Datasheet
- Download
- Description

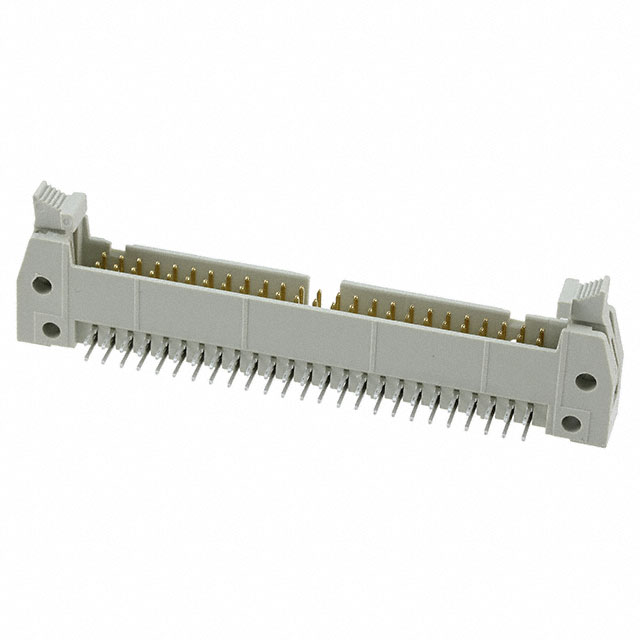

- CONN HEADER R/A 50POS 2.54MM
- Stock
- 47
- In Stock ：
- 47
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- HARTING
- Product Category :
- Headers, Male Pins
- Reliability :
- COMMERCIAL
- Number of Conductors :
- ONE
- Fastening Type :
- Latch Lock/Eject Hooks, Short
- Mounting Type :
- Through Hole, Right Angle
- Insulation Material :
- Polybutylene Terephthalate (PBT), Glass Filled
- Contact Finish - Mating :
- NOT SPECIFIED
- Dielectric Withstanding Voltage :
- 1000VAC V
- Feature :
- Keying Slot, Mounting Flange
- Number Of PCB Rows :
- 2
- HTS Code :
- 8536.69.40.40
- Length - Termination :
- 0.114 inch
- IEC Conformance :
- yes
- Mount :
- Through Hole
- Color :
- Grey
- Mixed Contacts :
- No
- Contact Type :
- Male Pin
- Body Depth :
- 0.681 inch
- Factory Lead Time :
- 7 Weeks
- Pbfree Code :
- yes
- Termination :
- Solder
- Filter Feature :
- No
- Rated Current (Signal) :
- 1A
- Additional Feature :
- STANDARDS: IEC 60603-13; DIN EN 60603-13, POLARIZED
- Material Flammability Rating :
- UL94 V-0
- Body Length or Diameter :
- 3.654 inch
- RoHS Status :
- ROHS3 Compliant
- Option :
- GENERAL PURPOSE
- Contact Material :
- COPPER ALLOY
- Voltage - Rated DC :
- 350V
- PCB Contact Pattern :
- RECTANGULAR
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Operating Temperature :
- -55°C~125°C
- Connector Type :
- Header
- Row Spacing - Mating :
- 0.100 (2.54mm)
- MIL Conformance :
- No
- Contact Shape :
- Square
- ECCN Code :
- EAR99
- Body Breadth :
- 0.331 inch
- Mating Contact Pitch :
- 0.1 inch
- DIN Conformance :
- yes
- Contact Length - Mating :
- 0.240 6.10mm
- Voltage - Rated AC :
- 350V
- Flammability Rating :
- UL94 V-0
- Contact Length - Post :
- 0.114 2.90mm
- Reference Standard :
- UL
- Contact Resistance :
- 20mOhm
- Contact Plating :
- Gold
- Insulation Color :
- Gray
- Insulation Resistance :
- 1GOhm
- Shrouding :
- Shrouded - 4 Wall
- Series :
- SEK
- Number of Positions :
- 50
- Lead Pitch :
- 2.54mm
- Contact Gender :
- Male
- Style :
- Board to Cable/Wire
- Number of Positions Loaded :
- All
- REACH SVHC :
- No SVHC
- Insulation Height :
- 0.335 8.51mm
- Packaging :
- Tray
- UL Flammability Code :
- 94V-0
- Pitch - Mating :
- 0.100 2.54mm
- Number of Rows :
- 2
- Current Rating :
- 2A
- Polarization Key :
- CTR W/GUIDE SLOTS
- Datasheets
- 09185507913
SEK Series 2-Row Header Solder Copper Alloy Tray Through Hole, Right Angle NOT SPECIFIED Polybutylene Terephthalate (PBT), Glass Filled 50-Position Board to Cable/Wire 0.335 8.51mm Height
09185507913 Overview
The product is packaged in Header.This device is mounted in the Through Hole, Right Angle position.It has been determined that a Tray case is necessary to package the product.There is a product in the SEK Series.To name a few, there is also STANDARDS: IEC 60603-13; DIN EN 60603-13, POLARIZED.There are a number of advantages to its Keying Slot, Mounting Flange feature.Part Through Hole is mounted to the part.As a result, the device runs at -55°C~125°C Operating Temperature.
09185507913 Features
SEK series
09185507913 Applications
There are a lot of HARTING
09185507913 Rectangular Connectors applications.
