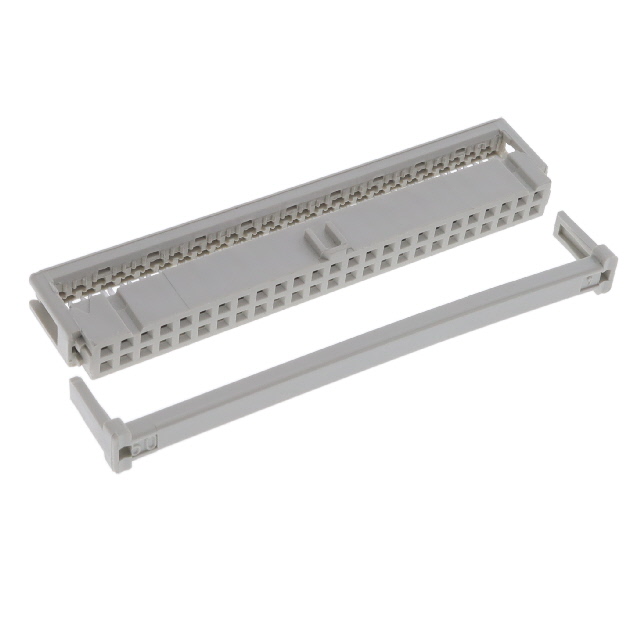

09185507813

Manufacturer :

HARTING

Product Category :

Free Hanging, Panel Mount

Flammability Rating :

UL94 V-0

Feature :

Feed Through, Polarizing Key, Strain Relief

RoHS Status :

ROHS3 Compliant

Wire Gauge (Max) :

28 AWG

Row Spacing :

0.100 (2.54mm)

Pitch :

0.100 2.54mm

REACH SVHC :

No SVHC

Voltage - Rated DC :

350V

Depth :

7.2mm

Orientation :

RIGHT ANGLE

Wire Gauge :

26-28 AWG

Contact Finish - Mating :

NOT SPECIFIED

Total Number of Contacts :

50

Wire/Cable Type :

Ribbon

Contact Current Rating :

1A

Option :

GENERAL PURPOSE

Mounting Type :

Free Hanging (In-Line)

ECCN Code :

EAR99

Reliability :

COMMERCIAL

Reference Standard :

UL

Color :

Grey

Termination :

IDT

Insulation Material :

PBTP 30% FIBRE ENHANCED

Lead Pitch :

2.54mm

UL Flammability Code :

94V-0

Polarization Key :

CENTER

Body/Shell Style :

PLUG

IEC Conformance :

yes

Cable Termination :

IDC

Number of Rows :

2

Contact Type :

Female Socket

Number of Poles :

50

Insulation Resistance :

1GOhm

Additional Feature :

STANDARD: IEC 60603-13; DIN EN 60603-13, POLARIZED

Max Operating Temperature :

105°C

Length :

68.1mm

Connector Type :

Receptacle

Series :

SEK

DIN Conformance :

yes

Contact Design :

PREASSEM CONN

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Mixed Contacts :

No

Contact Resistance :

20mOhm

HTS Code :

8536.69.40.40

Factory Lead Time :

4 Weeks

MIL Conformance :

No

Rated Current (Signal) :

2A

Packaging :

Bulk

Wire Type :

Ribbon Cable

Filter Feature :

No

Mount :

Cable, Free Hanging

Contact Plating :

Gold

Min Operating Temperature :

-40°C

Pbfree Code :

yes

Voltage - Rated AC :

350V

Wire Gauge (Min) :

26 AWG

Contact Material :

Brass
