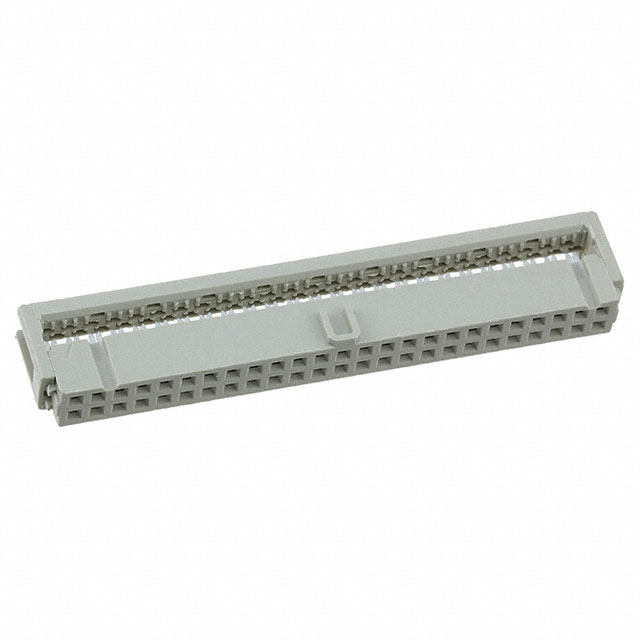

09185506803

Manufacturer :

HARTING

Product Category :

Free Hanging, Panel Mount

Width :

68.1mm

Contact Gender :

FEMALE

Packaging :

Bulk

Feature :

Feed Through, Polarizing Key

Wire/Cable Type :

Ribbon

Pbfree Code :

yes

Color :

Grey

Pitch :

0.100 2.54mm

Termination Type :

IDC

Number of Rows :

2

Row Spacing :

0.100 (2.54mm)

Filter Feature :

No

ECCN Code :

EAR99

Reference Standard :

UL

Reliability :

COMMERCIAL

Rated Current (Signal) :

2A

Wire Gauge (Max) :

28 AWG

Contact Material :

Brass

Polarization Key :

CENTER

Total Number of Contacts :

50

Insulation Material :

PBTP 30% FIBRE ENHANCED

IEC Conformance :

yes

Additional Feature :

STANDARD: IEC 60603-13; DIN EN 60603-13, POLARIZED

DIN Conformance :

yes

Contact Type :

Female Socket

Min Operating Temperature :

-55°C

Height :

13.8mm

HTS Code :

8536.69.40.40

UL Flammability Code :

94V-0

Insulation Resistance :

1000000000Ohm

Contact Plating :

Gold

Number of Positions :

50

Factory Lead Time :

4 Weeks

Wire Gauge (Min) :

26 AWG

Wire Gauge :

26-28 AWG

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Mount :

Cable, Free Hanging

Series :

SEK

Wire Type :

Ribbon Cable

RoHS Status :

ROHS3 Compliant

REACH SVHC :

No SVHC

Option :

GENERAL PURPOSE

Cable Termination :

IDC

Current Rating :

2A

Lead Pitch :

2.54mm

Length :

6.1mm

Orientation :

RIGHT ANGLE

Connector Type :

Receptacle

MIL Conformance :

No

Contact Finish - Mating :

NOT SPECIFIED

Mounting Type :

Free Hanging (In-Line)

Max Operating Temperature :

125°C

Mixed Contacts :

No

Body/Shell Style :

PLUG
