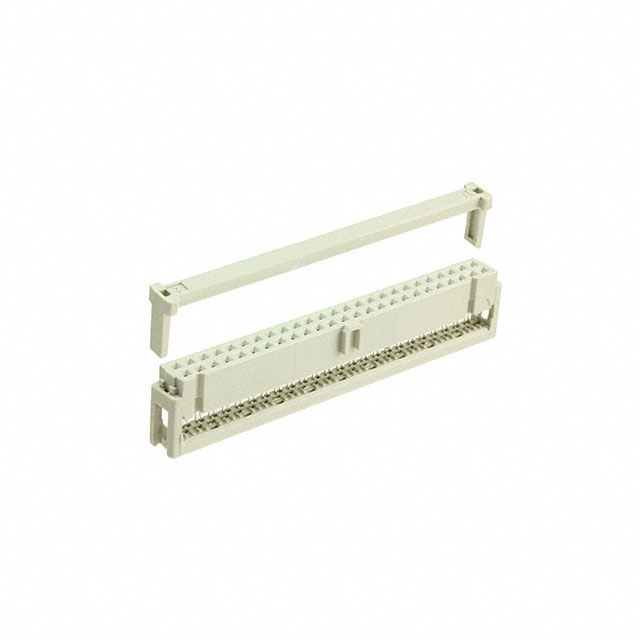

09185505813

Manufacturer :

HARTING

Product Category :

Free Hanging, Panel Mount

Connector Type :

Receptacle

Contact Design :

PREASSEM CONN

Mounting Type :

Free Hanging (In-Line)

Contact Finish Thickness :

30.0μin 0.76μm

Number of Rows :

2

UL Flammability Code :

94V-0

Number of Positions :

50

Factory Lead Time :

7 Weeks

Option :

GENERAL PURPOSE

Mixed Contacts :

No

Pitch :

0.100 2.54mm

Wire/Cable Type :

Ribbon

Wire Type :

Ribbon Cable

Series :

SEK

Total Number of Contacts :

50

Packaging :

Bulk

Filter Feature :

No

IEC Conformance :

yes

DIN Conformance :

yes

RoHS Status :

ROHS3 Compliant

Mount :

Free Hanging

Body/Shell Style :

PLUG

Wire Gauge :

26-28 AWG

Wire Gauge (Min) :

26 AWG

Termination Type :

IDC

Row Spacing :

0.100 (2.54mm)

Insulation Resistance :

1000000000Ohm

Reference Standard :

UL

Feature :

Feed Through, Polarizing Key, Strain Relief

Reliability :

COMMERCIAL

ECCN Code :

EAR99

HTS Code :

8536.69.40.40

Wire Gauge (Max) :

28 AWG

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Contact Type :

Female Socket

Operating Temperature (Min) :

-55°C

Contact Material :

NOT SPECIFIED

Insulation Material :

PBTP 30% FIBRE ENHANCED

Pbfree Code :

yes

Plating Thickness :

30μin

Number of Conductors :

ONE

Polarization Key :

CENTER

Additional Feature :

STANDARD: IEC 60603-13; DIN EN 60603-13, POLARIZED

MIL Conformance :

No

Rated Current (Signal) :

2A

Contact Finish :

Gold

Current Rating :

2A

Cable Termination :

IDC

Orientation :

Straight
