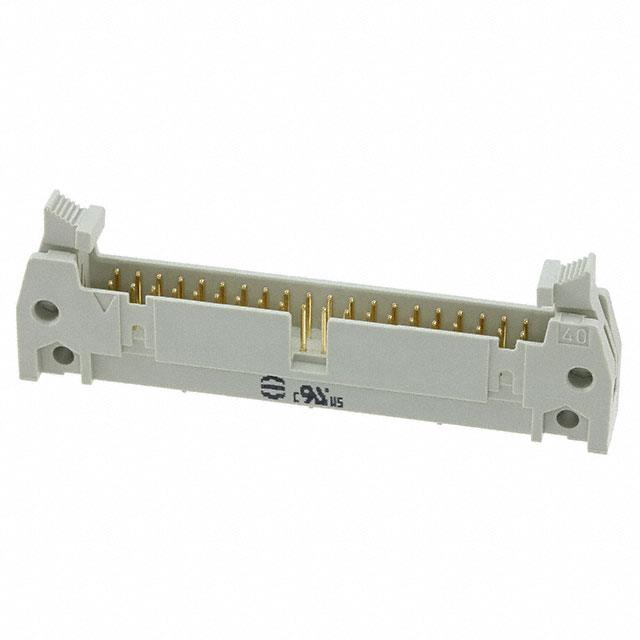

09185407913
Or copy the link below:
- Mfr.Part #
- 09185407913
- Manufacturer
- HARTING
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER R/A 40POS 2.54MM
- Stock
- 4
- In Stock ：
- 4
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- HARTING
- Product Category :
- Headers, Male Pins
- Fastening Type :
- Latch Lock/Eject Hooks, Short
- Contact Plating :
- Gold
- REACH SVHC :
- No SVHC
- Current Rating :
- 2A
- Series :
- SEK
- Mixed Contacts :
- No
- UL Flammability Code :
- 94V-0
- Length :
- 70.4mm
- Additional Feature :
- STANDARDS: IEC 60603-13; DIN EN 60603-13, POLARIZED
- Contact Shape :
- Square
- Mating Contact Pitch :
- 0.1 inch
- Number of Conductors :
- ONE
- Body Breadth :
- 0.331 inch
- Insulation Resistance :
- 1GOhm
- Rated Current (Signal) :
- 1A
- Number Of PCB Rows :
- 2
- Hole Diameter :
- 900 μm
- Contact Material :
- COPPER ALLOY
- Voltage - Rated AC :
- 350V
- Polarization Key :
- CTR W/GUIDE SLOTS
- Pitch - Mating :
- 0.100 2.54mm
- Mount :
- Through Hole
- ECCN Code :
- EAR99
- Style :
- Board to Cable/Wire
- Working Voltage :
- 350V
- MIL Conformance :
- No
- Reference Standard :
- UL
- Connector Type :
- Header
- Lead Pitch :
- 2.54mm
- Row Spacing - Mating :
- 0.100 (2.54mm)
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- DIN Conformance :
- yes
- RoHS Status :
- ROHS3 Compliant
- Contact Finish - Mating :
- NOT SPECIFIED
- Insulation Color :
- Gray
- Contact Resistance :
- 20mOhm
- IEC Conformance :
- yes
- Mounting Type :
- Through Hole, Right Angle
- Dielectric Withstanding Voltage :
- 1000VAC V
- Voltage - Rated DC :
- 350V
- Contact Length - Mating :
- 0.240 6.10mm
- Shrouding :
- Shrouded - 4 Wall
- Option :
- GENERAL PURPOSE
- Material Flammability Rating :
- UL94 V-0
- Reliability :
- COMMERCIAL
- Factory Lead Time :
- 7 Weeks
- Contact Type :
- Male Pin
- Packaging :
- Bulk
- Contact Gender :
- Male
- Flammability Rating :
- UL94 V-0
- Contact Length - Post :
- 0.114 2.90mm
- Number of Poles :
- 40
- Number of Rows :
- 2
- Color :
- Grey
- Operating Temperature :
- -55°C~125°C
- Termination :
- Solder
- PCB Contact Pattern :
- RECTANGULAR
- Depth :
- 23.3mm
- Durability :
- 50 Cycles
- Filter Feature :
- No
- Orientation :
- RIGHT ANGLE
- Number of Positions Loaded :
- All
- Pbfree Code :
- yes
- Insulation Height :
- 0.335 8.51mm
- Insulation Material :
- Polybutylene Terephthalate (PBT), Glass Filled
- Feature :
- Keying Slot, Mounting Flange
- Datasheets
- 09185407913
SEK Series 2-Row Header Solder Copper Alloy Bulk Through Hole, Right Angle NOT SPECIFIED Polybutylene Terephthalate (PBT), Glass Filled Board to Cable/Wire 0.335 8.51mm Height
09185407913 Overview
A Header package is included with it.Its mounting type is Through Hole, Right Angle.Packaging is performed using a Bulk case.It is part of the SEK Series of products.Additionally, there are other features, such as STANDARDS: IEC 60603-13; DIN EN 60603-13, POLARIZED.A number of features make it more powerful because of its Keying Slot, Mounting Flange feature.Through Hole mounts the part.There is no operating temperature for the device.
09185407913 Features
SEK series
09185407913 Applications
There are a lot of HARTING
09185407913 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
