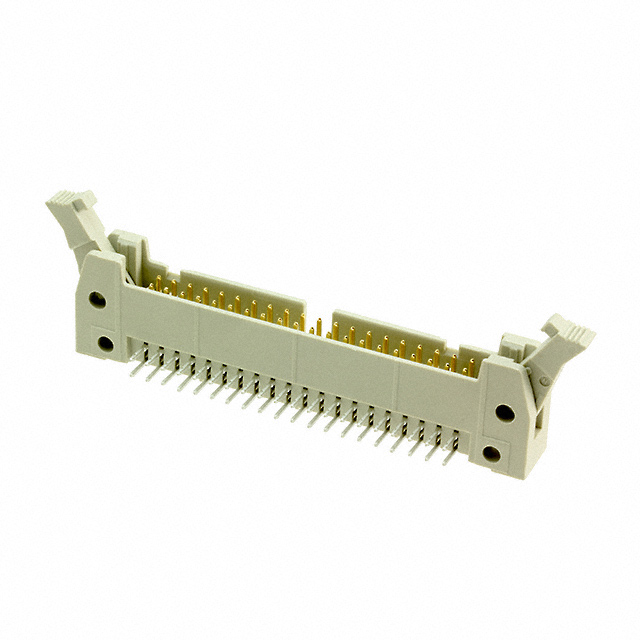

09185407903

Manufacturer :

HARTING

Product Category :

Headers, Male Pins

Contact Finish - Mating :

NOT SPECIFIED

Number of Rows :

2

Contact Length - Mating :

0.240 6.10mm

Number Of PCB Rows :

2

Reference Standard :

UL

Number of Positions Loaded :

All

Mounting Type :

Through Hole, Right Angle

Mixed Contacts :

No

Voltage - Rated DC :

350V

PCB Contact Pattern :

RECTANGULAR

Series :

SEK

Insulation Resistance :

1GOhm

Orientation :

RIGHT ANGLE

Insulation Color :

Gray

IEC Conformance :

yes

Number of Conductors :

ONE

Insulation Material :

Polybutylene Terephthalate (PBT), Glass Filled

Fastening Type :

Latch Lock/Eject Hooks, Long

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

RoHS Status :

ROHS3 Compliant

Feature :

Keying Slot, Mounting Flange

DIN Conformance :

yes

MIL Conformance :

No

Hole Diameter :

900 μm

Polarization Key :

POLARIZED HOUSING

Contact Shape :

Square

Termination :

Solder

Factory Lead Time :

7 Weeks

Pitch - Mating :

0.100 2.54mm

Length :

70.4mm

Connector Type :

Header

Depth :

25.75mm

UL Flammability Code :

94V-0

Contact Length - Post :

0.114 2.90mm

Insulation Height :

0.335 8.51mm

Current Rating :

2A

Contact Material :

COPPER ALLOY

Durability :

50 Cycles

Flammability Rating :

UL94 V-0

Contact Type :

Male Pin

Contact Resistance :

20mOhm

Contact Gender :

Male

Number of Positions :

40

Style :

Board to Cable/Wire

Contact Plating :

Gold

Pbfree Code :

yes

Filter Feature :

No

Operating Temperature :

-55°C~125°C

Voltage - Rated AC :

350V

Working Voltage :

350V

Color :

Grey

Rated Current (Signal) :

2A

Mating Contact Pitch :

0.1 inch

Mount :

Through Hole

REACH SVHC :

No SVHC

Lead Pitch :

2.54mm

Row Spacing - Mating :

0.100 (2.54mm)

Body Breadth :

0.335 inch

Material Flammability Rating :

UL94 V-0

Additional Feature :

STANDARDS: IEC 60603-13; DIN EN 60603-13, POLARIZED

Shrouding :

Shrouded - 4 Wall

Reliability :

COMMERCIAL

Packaging :

Tray

Option :

GENERAL PURPOSE
