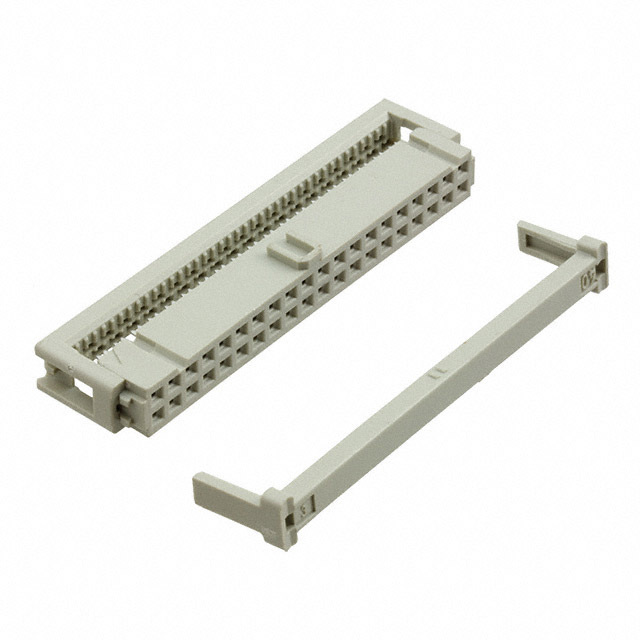

09185407813

Manufacturer :

HARTING

Product Category :

Free Hanging, Panel Mount

Wire Gauge :

26-28 AWG

DIN Conformance :

yes

Pbfree Code :

yes

Body/Shell Style :

PLUG

Filter Feature :

No

Mixed Contacts :

No

Wire/Cable Type :

Ribbon

Wire Gauge (Max) :

28 AWG

Contact Plating :

Gold

Voltage - Rated DC :

350V

Contact Current Rating :

1A

Mount :

Cable, Free Hanging

Mounting Type :

Free Hanging (In-Line)

Contact Gender :

FEMALE

Contact Finish - Mating :

NOT SPECIFIED

Current Rating :

2A

UL Flammability Code :

94V-0

Total Number of Contacts :

40

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Feature :

Feed Through, Polarizing Key, Strain Relief

Max Operating Temperature :

105°C

Flammability Rating :

UL94 V-0

REACH SVHC :

No SVHC

Insulation Resistance :

1GOhm

Color :

Grey

Orientation :

RIGHT ANGLE

Connector Type :

Receptacle

MIL Conformance :

No

Rated Current (Signal) :

2A

Number of Poles :

40

Wire Type :

Ribbon Cable

Cable Termination :

IDC

Termination :

IDT

Reliability :

COMMERCIAL

Wire Gauge (Min) :

26 AWG

Min Operating Temperature :

-40°C

Additional Feature :

STANDARD: IEC 60603-13; DIN EN 60603-13, POLARIZED

Option :

GENERAL PURPOSE

Contact Material :

Brass

Packaging :

Bulk

Lead Pitch :

2.54mm

Pitch :

0.100 2.54mm

Insulation Material :

PBTP 30% FIBRE ENHANCED

RoHS Status :

ROHS3 Compliant

Factory Lead Time :

4 Weeks

Voltage - Rated AC :

350V

Series :

SEK

Durability :

50 Cycles

Number of Rows :

2

Row Spacing :

0.100 (2.54mm)

Length :

55.4mm

Depth :

7.2mm

Polarization Key :

CENTER

Contact Resistance :

20mOhm

Reference Standard :

UL

Contact Type :

Female Socket

IEC Conformance :

yes
