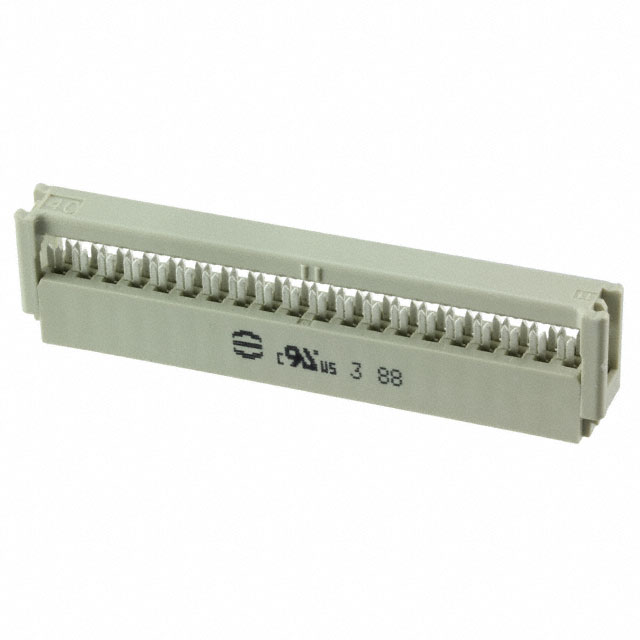

09185407803

Manufacturer :

HARTING

Product Category :

Free Hanging, Panel Mount

Body/Shell Style :

PLUG

Contact Type :

Female Socket

REACH SVHC :

No SVHC

Contact Plating :

Gold

Pbfree Code :

yes

Wire/Cable Type :

Ribbon

Option :

GENERAL PURPOSE

Reliability :

COMMERCIAL

Color :

Grey

Mounting Type :

Free Hanging (In-Line)

Feature :

Feed Through, Polarizing Key

Row Spacing :

0.100 (2.54mm)

Connector Type :

Receptacle

Depth :

7.2mm

Total Number of Contacts :

40

Cable Termination :

IDC

Wire Gauge (Min) :

26 AWG

Orientation :

RIGHT ANGLE

UL Flammability Code :

94V-0

Series :

SEK

Mount :

Cable, Free Hanging

Flammability Rating :

UL94 V-0

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Contact Current Rating :

1A

Wire Type :

Ribbon Cable

Factory Lead Time :

4 Weeks

Termination :

IDT

Min Operating Temperature :

-55°C

Insulation Material :

PBTP 30% FIBRE ENHANCED

RoHS Status :

ROHS3 Compliant

Pitch :

0.100 2.54mm

Filter Feature :

No

Wire Gauge :

26-28 AWG

Contact Resistance :

20mOhm

Rated Current (Signal) :

2A

Polarization Key :

CENTER

Packaging :

Bulk

IEC Conformance :

yes

Max Operating Temperature :

125°C

DIN Conformance :

yes

Length :

55.4mm

Number of Positions :

40

MIL Conformance :

No

Voltage - Rated AC :

350V

Additional Feature :

STANDARD: IEC 60603-13; DIN EN 60603-13, POLARIZED

Number of Rows :

2

Weight :

5.099994g

Lead Pitch :

2.54mm

Insulation Resistance :

1GOhm

Contact Finish - Mating :

NOT SPECIFIED

Mixed Contacts :

No

Contact Design :

PREASSEM CONN

Contact Material :

Brass

Durability :

50 Cycles

Wire Gauge (Max) :

28 AWG

Reference Standard :

UL

Voltage - Rated DC :

350V
