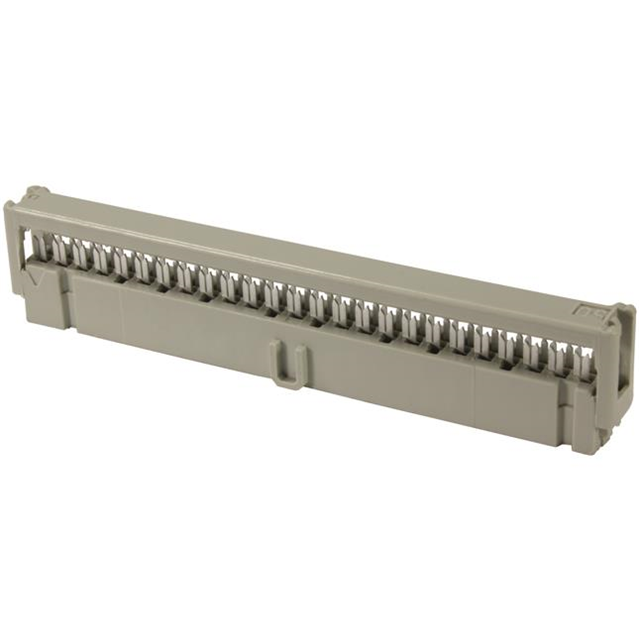

09185405803

Manufacturer :

HARTING

Product Category :

Free Hanging, Panel Mount

Wire/Cable Type :

Ribbon

Connector Type :

Receptacle

Reference Standard :

UL

Rated Current (Signal) :

2A

DIN Conformance :

yes

Option :

GENERAL PURPOSE

Filter Feature :

No

RoHS Status :

ROHS3 Compliant

Packaging :

Bulk

Body/Shell Style :

PLUG

Mixed Contacts :

No

Operating Temperature (Min) :

-55°C

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Row Spacing :

0.100 (2.54mm)

MIL Conformance :

No

Gender :

FEMALE

Current Rating :

2A

Plating Thickness :

30μin

Additional Feature :

STANDARD: IEC 60603-13; DIN EN 60603-13, POLARIZED

Contact Type :

Female Socket

Orientation :

Straight

Total Number of Contacts :

40

IEC Conformance :

yes

Wire Type :

Ribbon Cable

Wire Gauge (Max) :

28 AWG

Mount :

Free Hanging

Mounting Type :

Free Hanging (In-Line)

Pbfree Code :

yes

Reliability :

COMMERCIAL

Factory Lead Time :

7 Weeks

Pitch :

0.100 2.54mm

ECCN Code :

EAR99

Feature :

Feed Through, Polarizing Key

Number of Positions :

40

Wire Gauge (Min) :

26 AWG

Contact Design :

PREASSEM CONN

Wire Gauge :

26-28 AWG

Cable Termination :

IDC

Number of Rows :

2

Contact Finish Thickness :

30.0μin 0.76μm

Insulation Material :

PBTP 30% FIBRE ENHANCED

Termination Type :

IDC

Insulation Resistance :

1000000000Ohm

Polarization Key :

CENTER

Contact Material :

NOT SPECIFIED

Series :

SEK

UL Flammability Code :

94V-0

Contact Finish :

Gold
