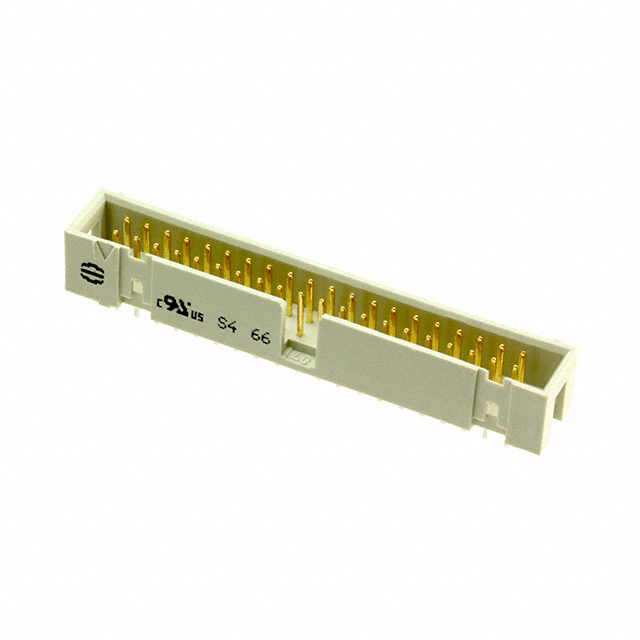

09185405324

Manufacturer :

HARTING

Product Category :

Headers, Male Pins

Mounting Type :

Through Hole

Material Flammability Rating :

UL94 V-0

Mount :

Through Hole

Operating Temperature :

-55°C~125°C

Gender :

Male

REACH SVHC :

No SVHC

Termination :

Solder

ECCN Code :

EAR99

Insulation Material :

Polybutylene Terephthalate (PBT), Glass Filled

Style :

Board to Cable/Wire

Length :

58.42mm

IEC Conformance :

yes

Mating Contact Pitch :

0.1 inch

Color :

Grey

Number of Rows :

2

Contact Type :

Male Pin

Fastening Type :

Latch Holder

Packaging :

Bulk

Filter Feature :

No

Row Spacing - Mating :

0.100 (2.54mm)

Number Of PCB Rows :

2

Additional Feature :

STANDARD: IEC 60603-13; DIN EN 60603-13, POLARIZED

Number of Positions Loaded :

All

Contact Length - Post :

0.114 2.90mm

Pbfree Code :

yes

Feature :

Keying Slot

Depth :

9.2mm

Mixed Contacts :

No

Factory Lead Time :

4 Weeks

DIN Conformance :

yes

Contact Shape :

Square

Shrouding :

Shrouded - 4 Wall

RoHS Status :

ROHS3 Compliant

Series :

SEK

Polarization Key :

POLARIZED HOUSING

Insulation Color :

Gray

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

MIL Conformance :

No

Contact Finish - Mating :

Gold

Orientation :

Straight

Connector Type :

Header

Plating Thickness :

30μin

Contact Finish - Post :

Tin

Reference Standard :

UL

Contact Material :

COPPER ALLOY

Number of Positions :

40

Number of Conductors :

ONE

Insulation Height :

0.350 8.89mm

Insulation Resistance :

1000000000Ohm

Rated Current (Signal) :

2A

Body Breadth :

0.366 inch

Contact Finish Thickness - Mating :

30.0μin 0.76μm

Pitch - Mating :

0.100 2.54mm

PCB Contact Pattern :

RECTANGULAR

Reliability :

COMMERCIAL

Option :

GENERAL PURPOSE

Contact Length - Mating :

0.242 6.15mm

UL Flammability Code :

94V-0
