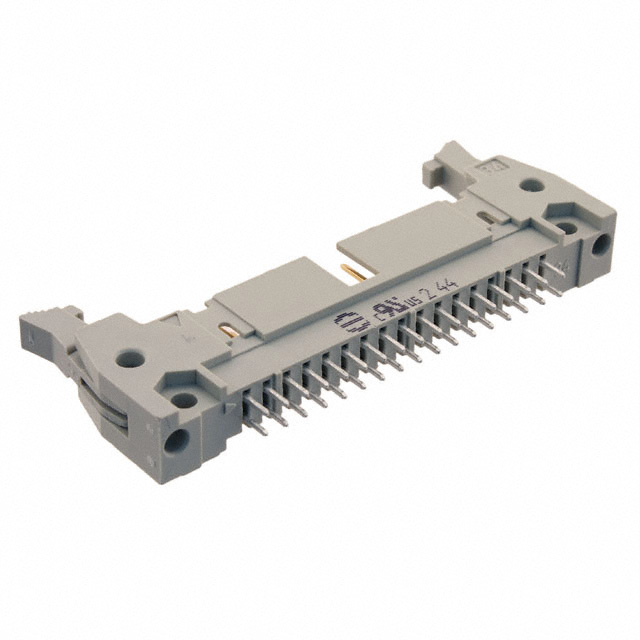

09185346902

Manufacturer :

HARTING

Product Category :

Headers, Male Pins

Mount :

Through Hole

Contact Finish - Post :

Tin

Pbfree Code :

yes

IEC Conformance :

No

Orientation :

Straight

Number of Positions Loaded :

All

Dielectric Withstanding Voltage :

1000VAC V

Length :

62.8mm

Termination :

Solder

Gender :

Male

Filter Feature :

No

Number of Conductors :

ONE

Contact Type :

Male Pin

Insulation Resistance :

1000000000Ohm

Pitch - Mating :

0.100 2.54mm

MIL Conformance :

No

Mounting Type :

Through Hole

Packaging :

Bulk

Reliability :

COMMERCIAL

Material Flammability Rating :

UL94 V-0

Fastening Type :

Latch Lock/Eject Hooks, Long

Contact Length - Mating :

0.240 6.10mm

REACH SVHC :

No SVHC

HTS Code :

8536.69.40.40

Number Of PCB Rows :

2

Voltage - Rated :

500V

Feature :

Keying Slot, Mounting Flange

Color :

Grey

Number of Rows :

2

Contact Material :

COPPER ALLOY

ECCN Code :

EAR99

Option :

GENERAL PURPOSE

Connector Type :

Header

Depth :

8.5mm

Reference Standard :

UL

Number of Positions :

34

Insulation Color :

Gray

Body Breadth :

0.331 inch

Insulation Height :

0.681 17.30mm

Mating Contact Pitch :

0.1 inch

Mixed Contacts :

No

Shrouding :

Shrouded - 4 Wall

Overall Contact Length :

0.713 18.10mm

Additional Feature :

STANDARDS: DIN EN 60603-13; IEC 60603-13, POLARIZED

Style :

Board to Cable/Wire

Contact Finish - Mating :

NOT SPECIFIED

DIN Conformance :

yes

PCB Contact Pattern :

RECTANGULAR

Factory Lead Time :

7 Weeks

Row Spacing - Mating :

0.100 (2.54mm)

Rated Current (Signal) :

1A

Polarization Key :

CTR W/GUIDE SLOTS

Current Rating :

1A

Contact Plating :

Gold

Series :

SEK

RoHS Status :

ROHS3 Compliant

UL Flammability Code :

94V-0

Insulation Material :

Polybutylene Terephthalate (PBT), Glass Filled

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Operating Temperature :

-55°C~125°C

Contact Shape :

Square

Contact Length - Post :

0.177 4.50mm
