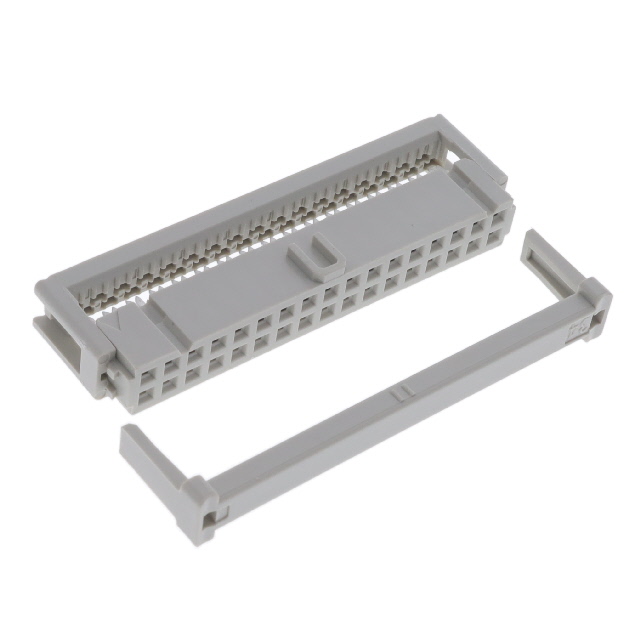

09185345813

Manufacturer :

HARTING

Product Category :

Free Hanging, Panel Mount

Wire Gauge (Min) :

26 AWG

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

UL Flammability Code :

94V-0

Termination Type :

IDC

Mixed Contacts :

No

Reliability :

COMMERCIAL

Polarization Key :

CENTER

Option :

GENERAL PURPOSE

IEC Conformance :

yes

Packaging :

Bulk

Body/Shell Style :

PLUG

Additional Feature :

STANDARD: IEC 60603-13; DIN EN 60603-13, POLARIZED

Wire Gauge (Max) :

28 AWG

Number of Rows :

2

Mount :

Free Hanging

DIN Conformance :

yes

Contact Material :

NOT SPECIFIED

Mounting Type :

Free Hanging (In-Line)

Reference Standard :

UL

Factory Lead Time :

7 Weeks

HTS Code :

8536.69.40.40

Connector Type :

Receptacle

Feature :

Feed Through, Polarizing Key, Strain Relief

Row Spacing :

0.100 (2.54mm)

Series :

SEK

Contact Finish :

Gold

Cable Termination :

IDC

Contact Design :

PREASSEM CONN

Rated Current (Signal) :

2A

Contact Type :

Female Socket

MIL Conformance :

No

Contact Finish Thickness :

30.0μin 0.76μm

Pbfree Code :

yes

Wire Type :

Ribbon Cable

Total Number of Contacts :

34

Insulation Resistance :

1000000000Ohm

Wire/Cable Type :

Ribbon

ECCN Code :

EAR99

Filter Feature :

No

Number of Conductors :

ONE

Insulation Material :

PBTP 30% FIBRE ENHANCED

Pitch :

0.100 2.54mm

RoHS Status :

ROHS3 Compliant

Operating Temperature (Min) :

-55°C

Wire Gauge :

26-28 AWG

Number of Positions :

34

Plating Thickness :

30μin
