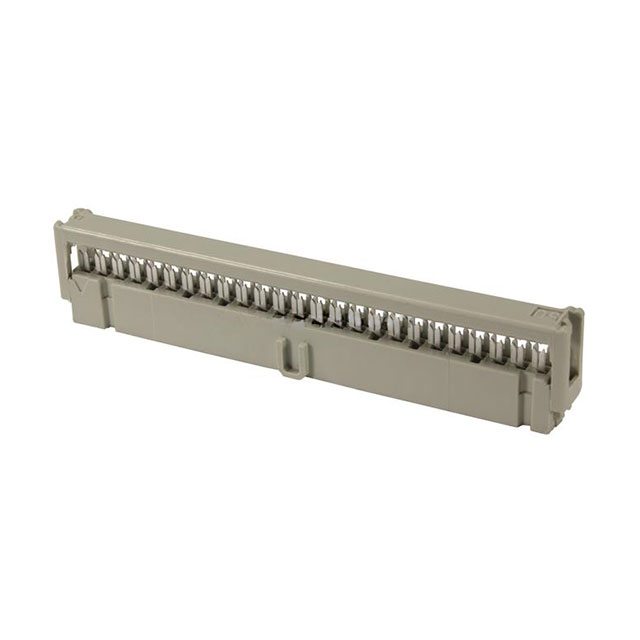

09185307803
Or copy the link below:
- Mfr.Part #
- 09185307803
- Manufacturer
- HARTING
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT 30POS IDC 26-28AWG
- Stock
- 27,128
- In Stock ：
- 27,128
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- HARTING
- Product Category :
- Free Hanging, Panel Mount
- Row Spacing :
- 0.100 (2.54mm)
- Pitch :
- 0.100 2.54mm
- Mount :
- Free Hanging
- Polarization Key :
- CENTER
- Contact Type :
- Female Socket
- Connector Type :
- Receptacle
- Contact Finish - Mating :
- AU
- Wire Gauge :
- 26-28 AWG
- Rated Current (Signal) :
- 2A
- Mounting Type :
- Free Hanging (In-Line)
- Cable Termination :
- IDC
- Packaging :
- Bulk
- Termination Type :
- IDC
- Feature :
- Feed Through, Polarizing Key
- Series :
- SEK
- Insulation Resistance :
- 1000000000Ohm
- Factory Lead Time :
- 7 Weeks
- Total Number of Contacts :
- 30
- Number of Rows :
- 2
- Wire Gauge (Min) :
- 26 AWG
- Reference Standard :
- UL
- Contact Design :
- PREASSEM CONN
- Wire Gauge (Max) :
- 28 AWG
- RoHS Status :
- ROHS3 Compliant
- Wire Type :
- Ribbon Cable
- Body Length or Diameter :
- 1.681 inch
- Wire/Cable Type :
- Ribbon
- Operating Temperature (Min) :
- -55°C
- Reliability :
- COMMERCIAL
- Durability :
- 50 Cycles
- Number of Positions :
- 30
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Datasheets
- 09185307803
