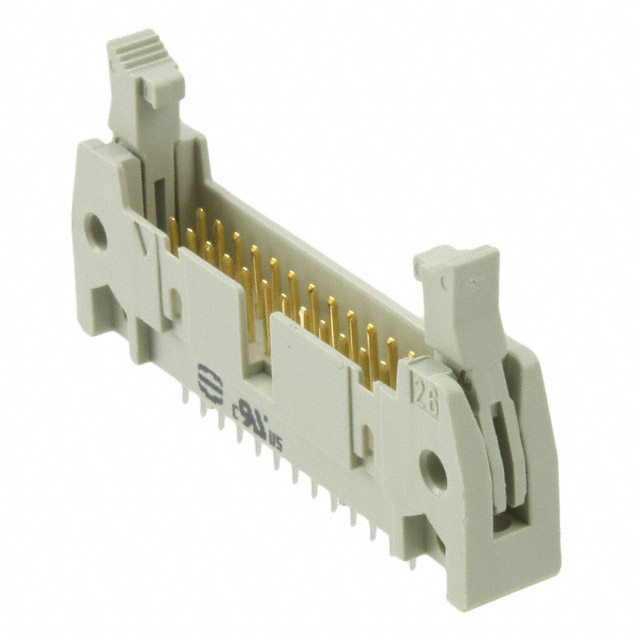

09185267904

Manufacturer :

HARTING

Product Category :

Headers, Male Pins

Reference Standard :

UL

Reliability :

COMMERCIAL

Factory Lead Time :

4 Weeks

Feature :

Keying Slot, Mounting Flange

Termination :

Solder

Contact Type :

Male Pin

Number of Poles :

26

IEC Conformance :

No

Pitch - Mating :

0.100 2.54mm

Style :

Board to Cable/Wire

Series :

SEK

Flammability Rating :

UL94 V-0

Current Rating :

1A

ECCN Code :

EAR99

Mount :

Through Hole

Polarization Key :

CTR W/GUIDE SLOTS

Length :

52.6mm

Contact Finish - Mating :

NOT SPECIFIED

REACH SVHC :

No SVHC

Mating Contact Pitch :

0.1 inch

Contact Gender :

Male

Mixed Contacts :

No

Material Flammability Rating :

UL94 V-0

PCB Contact Pattern :

RECTANGULAR

Lead Length :

29mm

Insulation Resistance :

1GOhm

Operating Temperature :

-55°C~125°C

Max Current Rating :

2A

DIN Conformance :

No

RoHS Status :

ROHS3 Compliant

Insulation Material :

Polybutylene Terephthalate (PBT), Glass Filled

Voltage - Rated AC :

350V

Insulation Height :

0.681 17.30mm

Number of Conductors :

ONE

Color :

Grey

Row Spacing - Mating :

0.100 (2.54mm)

MIL Conformance :

No

Voltage - Rated DC :

350V

Insulation Color :

Gray

Orientation :

Straight

Connector Type :

Header

Filter Feature :

No

Number of Rows :

2

Contact Finish - Post :

Tin

Contact Length - Post :

0.114 2.90mm

Packaging :

Bulk

Rated Current (Signal) :

1A

Contact Shape :

Square

Pbfree Code :

yes

Mounting Type :

Through Hole

Fastening Type :

Latch Lock/Eject Hooks, Long

Lead Pitch :

2.54mm

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Number of Positions Loaded :

All

UL Flammability Code :

94V-0

Number Of PCB Rows :

2

Additional Feature :

STANDARDS: DIN EN 60603-13; IEC 60603-13, POLARIZED

Contact Plating :

Gold

Shrouding :

Shrouded - 4 Wall

Contact Length - Mating :

0.228 5.80mm

Durability :

50 Cycles

Overall Contact Length :

0.650 16.51mm

HTS Code :

8536.69.40.40

Contact Material :

COPPER ALLOY

Hole Diameter :

900 μm

Option :

GENERAL PURPOSE

Body Breadth :

0.331 inch

Working Voltage :

350V

Depth :

8.5mm

Contact Resistance :

20mOhm

Dielectric Withstanding Voltage :

1000VAC V
