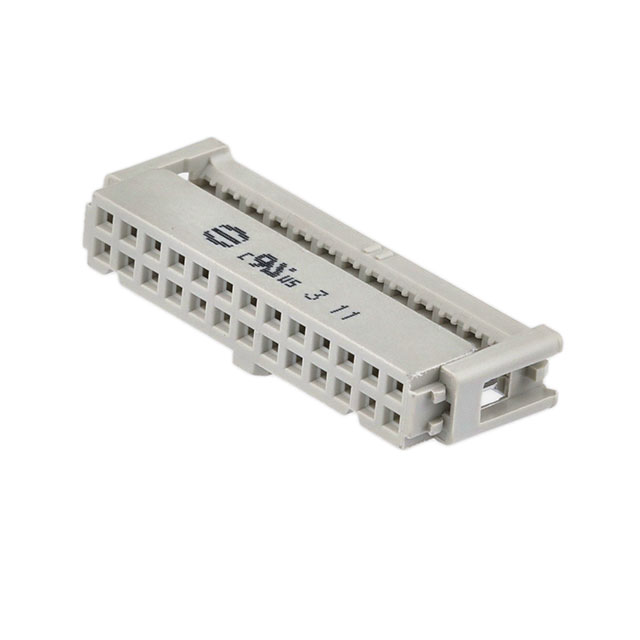

09185267803

Manufacturer :

HARTING

Product Category :

Free Hanging, Panel Mount

Option :

GENERAL PURPOSE

Connector Type :

Receptacle

UL Flammability Code :

94V-0

DIN Conformance :

yes

Wire Type :

Ribbon Cable

Color :

Grey

Filter Feature :

No

IEC Conformance :

yes

Max Operating Temperature :

105°C

Termination :

IDT

Wire/Cable Type :

Ribbon

Row Spacing :

0.100 (2.54mm)

Pitch :

0.100 2.54mm

ECCN Code :

EAR99

Polarization Key :

CENTER

Mixed Contacts :

No

HTS Code :

8536.69.40.40

Contact Resistance :

20mOhm

Factory Lead Time :

4 Weeks

Rated Current (Signal) :

2A

Contact Finish - Mating :

NOT SPECIFIED

Contact Material :

Brass

Series :

SEK

Depth :

7.2mm

Flammability Rating :

UL94 V-0

Body/Shell Style :

PLUG

Contact Design :

PREASSEM CONN

Lead Pitch :

2.54mm

Reliability :

COMMERCIAL

Length :

37.6mm

Cable Termination :

IDC

Total Number of Contacts :

26

Min Operating Temperature :

-40°C

RoHS Status :

ROHS3 Compliant

REACH SVHC :

No SVHC

Pbfree Code :

yes

Mount :

Cable, Free Hanging

Packaging :

Bulk

Voltage - Rated DC :

350V

Orientation :

RIGHT ANGLE

Contact Current Rating :

1A

Wire Gauge (Min) :

26 AWG

Feature :

Feed Through, Polarizing Key

Number of Poles :

26

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Number of Rows :

2

Contact Plating :

Gold

MIL Conformance :

No

Contact Type :

Female Socket

Insulation Material :

PBTP 30% FIBRE ENHANCED

Additional Feature :

STANDARD: IEC 60603-13; DIN EN 60603-13, POLARIZED

Wire Gauge :

26-28 AWG

Mounting Type :

Free Hanging (In-Line)

Reference Standard :

UL

Durability :

50 Cycles

Voltage - Rated AC :

350V

Wire Gauge (Max) :

28 AWG

Insulation Resistance :

1GOhm
