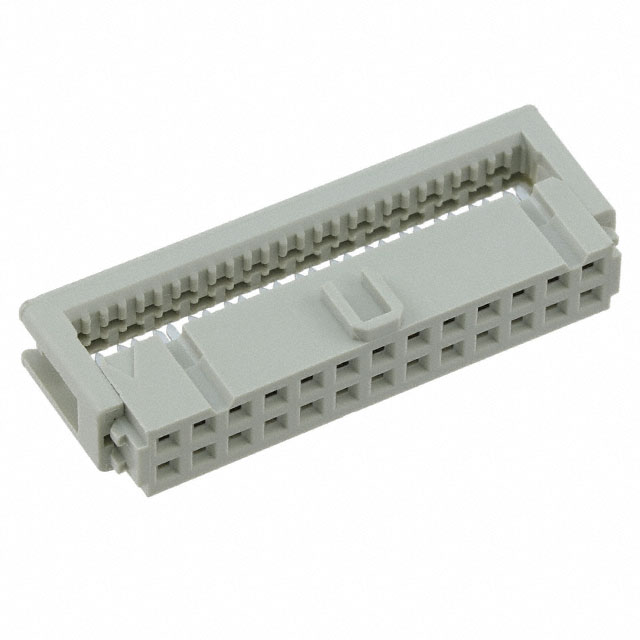

09185266803

Manufacturer :

HARTING

Product Category :

Free Hanging, Panel Mount

Wire/Cable Type :

Ribbon

Contact Finish - Mating :

NOT SPECIFIED

Contact Plating :

Gold

Depth :

7.2mm

Mixed Contacts :

No

Factory Lead Time :

4 Weeks

Packaging :

Bulk

Insulation Material :

PBTP 30% FIBRE ENHANCED

Row Spacing :

0.100 (2.54mm)

Wire Gauge (Min) :

26 AWG

DIN Conformance :

yes

Termination :

IDT

Number of Poles :

26

Mounting Type :

Free Hanging (In-Line)

Polarization Key :

CENTER

Current Rating :

2A

Contact Gender :

FEMALE

Pbfree Code :

yes

HTS Code :

8536.69.40.40

Insulation Resistance :

1000000000Ohm

Option :

GENERAL PURPOSE

REACH SVHC :

No SVHC

Series :

SEK

Orientation :

RIGHT ANGLE

Mount :

Cable, Free Hanging

Wire Type :

Ribbon Cable

Reference Standard :

UL

UL Flammability Code :

94V-0

Wire Gauge :

26-28 AWG

ECCN Code :

EAR99

RoHS Status :

ROHS3 Compliant

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Contact Material :

Brass

IEC Conformance :

yes

Lead Pitch :

2.54mm

Wire Gauge (Max) :

28 AWG

Feature :

Feed Through, Polarizing Key

Cable Termination :

IDC

MIL Conformance :

No

Total Number of Contacts :

26

Contact Type :

Female Socket

Additional Feature :

STANDARD: IEC 60603-13; DIN EN 60603-13, POLARIZED

Length :

37.6mm

Body/Shell Style :

PLUG

Reliability :

COMMERCIAL

Number of Rows :

2

Pitch :

0.100 2.54mm

Filter Feature :

No

Operating Temperature (Min) :

-55°C

Rated Current (Signal) :

2A

Connector Type :

Receptacle
