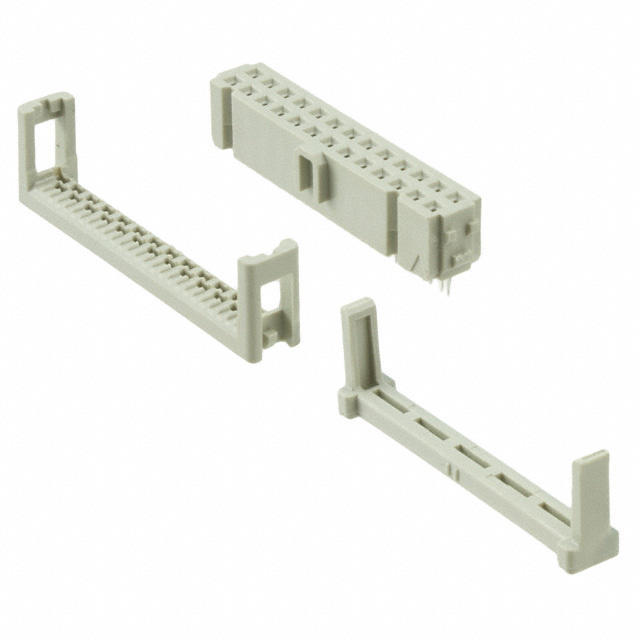

09185265813

Manufacturer :

HARTING

Product Category :

Free Hanging, Panel Mount

Feature :

Feed Through, Polarizing Key, Strain Relief

Filter Feature :

No

Pitch :

0.100 2.54mm

Orientation :

Straight

ECCN Code :

EAR99

Total Number of Contacts :

26

Number of Conductors :

ONE

Insulation Material :

PBTP 30% FIBRE ENHANCED

Wire Gauge (Max) :

28 AWG

DIN Conformance :

yes

Termination Type :

IDC

Gender :

FEMALE

RoHS Status :

ROHS3 Compliant

MIL Conformance :

No

Number of Rows :

2

Body/Shell Style :

PLUG

Connector Type :

Receptacle

Wire/Cable Type :

Ribbon

Contact Type :

Female Socket

Plating Thickness :

30μin

Body Length or Diameter :

1.48 inch

Insulation Resistance :

1000000000Ohm

Factory Lead Time :

7 Weeks

Mixed Contacts :

No

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Cable Termination :

IDC

Pbfree Code :

yes

Packaging :

Bulk

Mounting Type :

Free Hanging (In-Line)

Wire Gauge :

26-28 AWG

Additional Feature :

STANDARD: IEC 60603-13; DIN EN 60603-13, POLARIZED

Mount :

Free Hanging

Wire Type :

Ribbon Cable

Contact Finish :

Gold

Reliability :

COMMERCIAL

Polarization Key :

CENTER

UL Flammability Code :

94V-0

IEC Conformance :

yes

Contact Material :

NOT SPECIFIED

Current Rating :

2A

HTS Code :

8536.69.40.40

Number of Positions :

26

Contact Design :

PREASSEM CONN

Reference Standard :

UL

Rated Current (Signal) :

2A

Contact Finish Thickness :

30.0μin 0.76μm

Option :

GENERAL PURPOSE

Series :

SEK

Wire Gauge (Min) :

26 AWG

Operating Temperature (Min) :

-55°C

Row Spacing :

0.100 (2.54mm)
