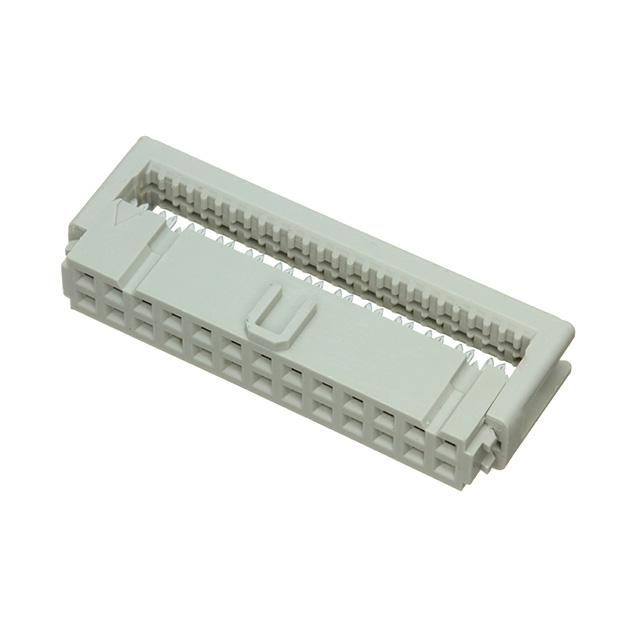

09185265803

Manufacturer :

HARTING

Product Category :

Free Hanging, Panel Mount

Operating Temperature (Min) :

-55°C

Pbfree Code :

yes

Contact Type :

Female Socket

Row Spacing :

0.100 (2.54mm)

Feature :

Feed Through, Polarizing Key

Insulation Material :

PBTP 30% FIBRE ENHANCED

Contact Finish Thickness :

30.0μin 0.76μm

Wire Gauge :

26-28 AWG

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

MIL Conformance :

No

Reliability :

COMMERCIAL

Polarization Key :

CENTER

Number of Rows :

2

Number of Positions :

26

Termination Type :

IDC

Body/Shell Style :

PLUG

Wire Type :

Ribbon Cable

Contact Finish :

Gold

Cable Termination :

IDC

Rated Current (Signal) :

2A

Filter Feature :

No

Wire Gauge (Min) :

26 AWG

Option :

GENERAL PURPOSE

Pitch :

0.100 2.54mm

HTS Code :

8536.69.40.40

Current Rating :

2A

Additional Feature :

STANDARD: IEC 60603-13; DIN EN 60603-13, POLARIZED

Insulation Resistance :

1000000000Ohm

ECCN Code :

EAR99

Contact Material :

NOT SPECIFIED

Packaging :

Bulk

UL Flammability Code :

94V-0

Contact Gender :

FEMALE

Factory Lead Time :

7 Weeks

Connector Type :

Receptacle

Body Length or Diameter :

1.48 inch

IEC Conformance :

yes

Mount :

Free Hanging

Series :

SEK

Wire/Cable Type :

Ribbon

DIN Conformance :

yes

RoHS Status :

ROHS3 Compliant

Mounting Type :

Free Hanging (In-Line)

Reference Standard :

UL

Plating Thickness :

30μin

Mixed Contacts :

No

Wire Gauge (Max) :

28 AWG

Total Number of Contacts :

26

Orientation :

Straight
