09185207903
Or copy the link below:
- Mfr.Part #
- 09185207903
- Manufacturer
- HARTING
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER R/A 20POS 2.54MM
- Stock
- 50
- In Stock ：
- 50
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- HARTING
- Product Category :
- Headers, Male Pins
- Body Breadth :
- 0.335 inch
- Rated Current (Signal) :
- 2A
- Color :
- Grey
- IEC Conformance :
- No
- Working Voltage :
- 350V
- Length :
- 45mm
- Termination :
- Solder
- Reference Standard :
- UL
- Insulation Color :
- Gray
- Voltage - Rated DC :
- 350V
- Mixed Contacts :
- No
- Pbfree Code :
- yes
- Insulation Height :
- 0.335 8.51mm
- Operating Temperature :
- -55°C~125°C
- Depth :
- 25.75mm
- Pitch - Mating :
- 0.100 2.54mm
- Contact Length - Mating :
- 0.240 6.10mm
- Contact Plating :
- Gold
- Contact Shape :
- Square
- Polarization Key :
- POLARIZED HOUSING
- Insulation Material :
- Polybutylene Terephthalate (PBT), Glass Filled
- Connector Type :
- Header
- Mounting Type :
- Through Hole, Right Angle
- Contact Gender :
- Male
- HTS Code :
- 8536.69.40.40
- Flammability Rating :
- UL94 V-0
- UL Flammability Code :
- 94V-0
- Factory Lead Time :
- 4 Weeks
- Orientation :
- RIGHT ANGLE
- RoHS Status :
- ROHS3 Compliant
- Contact Type :
- Male Pin
- Lead Pitch :
- 2.54mm
- Contact Length - Post :
- 0.114 2.90mm
- Mount :
- Through Hole
- Reliability :
- COMMERCIAL
- MIL Conformance :
- No
- REACH SVHC :
- No SVHC
- PCB Contact Pattern :
- RECTANGULAR
- Voltage - Rated AC :
- 350V
- Fastening Type :
- Latch Lock/Eject Hooks, Long
- Additional Feature :
- STANDARDS: IEC 60603-13; DIN EN 60603-13, POLARIZED
- Number of Positions :
- 20
- Filter Feature :
- No
- Shrouding :
- Shrouded - 4 Wall
- Contact Material :
- COPPER ALLOY
- Feature :
- Keying Slot, Mounting Flange
- ECCN Code :
- EAR99
- Packaging :
- Bulk
- Mating Contact Pitch :
- 0.1 inch
- Hole Diameter :
- 900 μm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Material Flammability Rating :
- UL94 V-0
- Contact Resistance :
- 20mOhm
- Number of Rows :
- 2
- Number of Conductors :
- ONE
- Series :
- SEK
- Style :
- Board to Cable/Wire
- Contact Finish - Mating :
- NOT SPECIFIED
- Durability :
- 50 Cycles
- Number Of PCB Rows :
- 2
- Current Rating :
- 2A
- Number of Positions Loaded :
- All
- Insulation Resistance :
- 1GOhm
- DIN Conformance :
- yes
- Option :
- GENERAL PURPOSE
- Row Spacing - Mating :
- 0.100 (2.54mm)
- Datasheets
- 09185207903

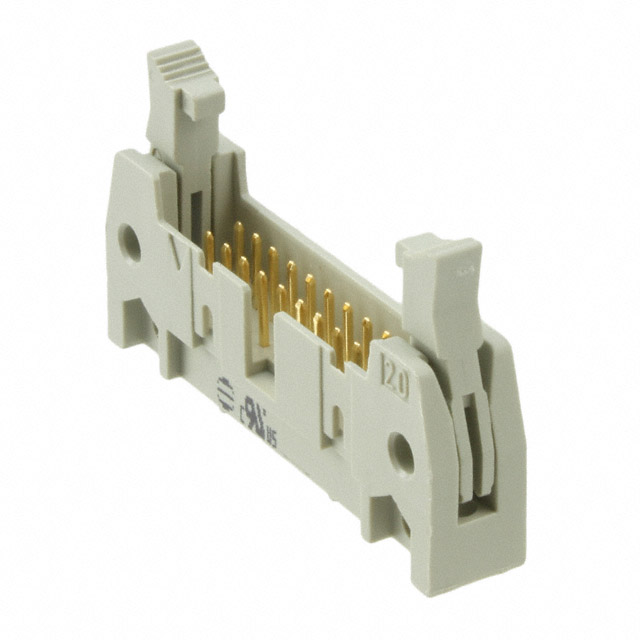

SEK Series 2-Row Header Solder Copper Alloy Bulk Through Hole, Right Angle NOT SPECIFIED Polybutylene Terephthalate (PBT), Glass Filled 20-Position Board to Cable/Wire 0.335 8.51mm Height
09185207903 Overview
A Header package is included with it.Its mounting type is Through Hole, Right Angle.Packaging is performed using a Bulk case.It is part of the SEK Series of products.Additionally, there are other features, such as STANDARDS: IEC 60603-13; DIN EN 60603-13, POLARIZED.A number of features make it more powerful because of its Keying Slot, Mounting Flange feature.Through Hole mounts the part.There is no operating temperature for the device.
09185207903 Features
SEK series
09185207903 Applications
There are a lot of HARTING
09185207903 Rectangular Connectors applications.
