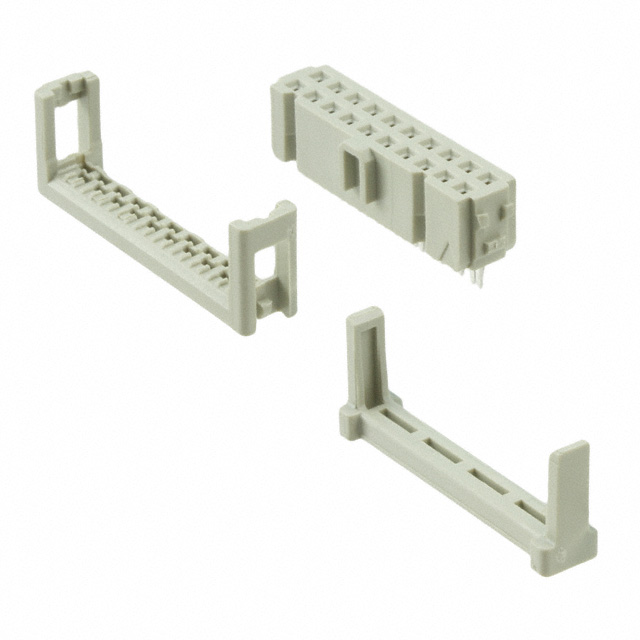

09185207813

Manufacturer :

HARTING

Product Category :

Free Hanging, Panel Mount

MIL Conformance :

No

Contact Finish - Mating :

NOT SPECIFIED

Weight :

3.040004g

Wire Gauge :

26-28 AWG

Voltage - Rated DC :

350V

Color :

Grey

UL Flammability Code :

94V-0

RoHS Status :

ROHS3 Compliant

Termination :

IDT

DIN Conformance :

yes

Current Rating :

1A

Total Number of Contacts :

20

Contact Design :

PREASSEM CONN

Flammability Rating :

UL94 V-0

Mounting Type :

Free Hanging (In-Line)

Connector Type :

Receptacle

Series :

SEK

Length :

30mm

Housing Material :

Polybutylene

Mixed Contacts :

No

Wire/Cable Type :

Ribbon

Contact Current Rating :

1A

Insulation Resistance :

1GOhm

ECCN Code :

EAR99

Number of Rows :

2

Max Current Rating :

1A

Orientation :

RIGHT ANGLE

HTS Code :

8536.69.40.40

Polarization Key :

CENTER

Pitch :

0.100 2.54mm

Wire Type :

Ribbon Cable

Filter Feature :

No

Max Operating Temperature :

125°C

Contact Resistance :

20mOhm

Row Spacing :

0.100 (2.54mm)

Contact Plating :

Gold

Pbfree Code :

yes

Option :

GENERAL PURPOSE

Factory Lead Time :

4 Weeks

IEC Conformance :

yes

Durability :

50 Cycles

Wire Gauge (Min) :

26 AWG

Number of Poles :

20

Contact Type :

Female Socket

Packaging :

Tray

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Voltage - Rated AC :

350V

Contact Material :

Brass

Reference Standard :

UL

Cable Termination :

IDC

Depth :

7.2mm

Feature :

Feed Through, Polarizing Key, Strain Relief

Mount :

Cable, Free Hanging

REACH SVHC :

No SVHC

Body/Shell Style :

PLUG

Wire Gauge (Max) :

28 AWG

Min Operating Temperature :

-40°C

Reliability :

COMMERCIAL

Lead Pitch :

2.54mm

Rated Current (Signal) :

2A

Additional Feature :

STANDARD: IEC 60603-13; DIN EN 60603-13, POLARIZED
