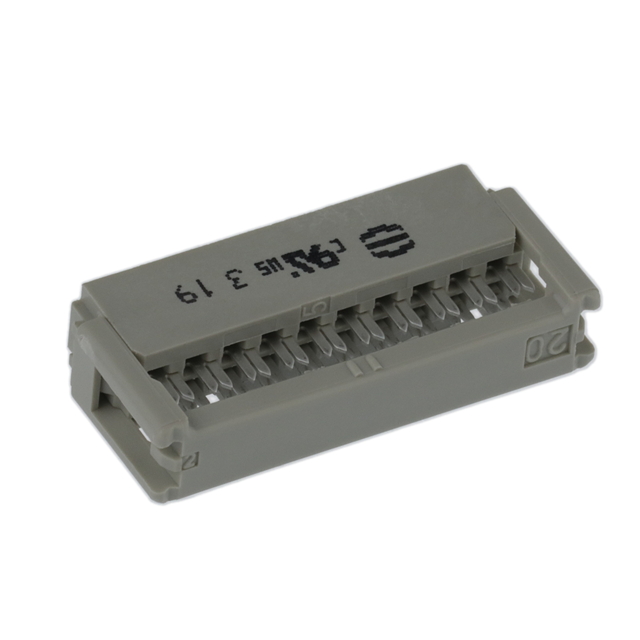

09185207804

Manufacturer :

HARTING

Product Category :

Free Hanging, Panel Mount

Contact Design :

PREASSEM CONN

Cable Termination :

IDC

Body Length or Diameter :

1.181 inch

Pbfree Code :

yes

Wire Gauge :

26-28 AWG

Connector Type :

Receptacle

Polarization Key :

CENTER

Wire/Cable Type :

Ribbon

Option :

GENERAL PURPOSE

Filter Feature :

No

Termination Type :

IDC

UL Flammability Code :

94V-0

Reference Standard :

UL

IEC Conformance :

yes

Packaging :

Bulk

Total Number of Contacts :

20

Additional Feature :

STANDARD: IEC 60603-13; DIN EN 60603-13, POLARIZED

Series :

SEK

Mixed Contacts :

No

Rated Current (Signal) :

2A

Operating Temperature (Min) :

-55°C

MIL Conformance :

No

Body/Shell Style :

PLUG

Durability :

50 Cycles

Insulation Material :

PBTP 30% FIBRE ENHANCED

DIN Conformance :

yes

Insulation Resistance :

1000000000Ohm

Wire Gauge (Max) :

28 AWG

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Contact Material :

NOT SPECIFIED

Feature :

Closed End, Polarizing Key

Contact Finish - Mating :

NOT SPECIFIED

Mount :

Free Hanging

Reliability :

COMMERCIAL

Wire Gauge (Min) :

26 AWG

Wire Type :

Ribbon Cable

Mounting Type :

Free Hanging (In-Line)

Factory Lead Time :

7 Weeks

Number of Positions :

20

Row Spacing :

0.100 (2.54mm)

Number of Rows :

2

Pitch :

0.100 2.54mm

Contact Type :

Female Socket

RoHS Status :

ROHS3 Compliant
