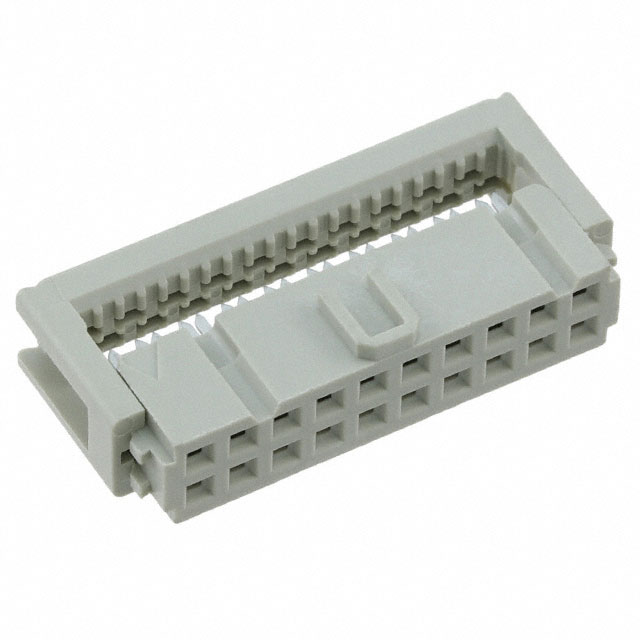

09185207803

Manufacturer :

HARTING

Product Category :

Free Hanging, Panel Mount

Min Operating Temperature :

-40°C

Depth :

7.2mm

Current Rating :

2A

Mount :

Cable, Free Hanging

Row Spacing :

0.100 (2.54mm)

Contact Type :

Female Socket

Wire Gauge :

26-28 AWG

Insulation Resistance :

1GOhm

Contact Current Rating :

1A

Reference Standard :

UL

Contact Material :

Brass

Contact Finish - Mating :

NOT SPECIFIED

Number of Rows :

2

MIL Conformance :

No

Wire Type :

Ribbon Cable

DIN Conformance :

yes

Mounting Type :

Free Hanging (In-Line)

Series :

SEK

Max Current Rating :

1A

REACH SVHC :

No SVHC

Connector Type :

Receptacle

Factory Lead Time :

4 Weeks

Polarization Key :

CENTER

Contact Gender :

FEMALE

IEC Conformance :

yes

Pitch :

0.100 2.54mm

Color :

Grey

Max Operating Temperature :

125°C

Durability :

50 Cycles

Length :

30mm

Contact Plating :

Gold

Mixed Contacts :

No

Option :

GENERAL PURPOSE

Additional Feature :

STANDARD: IEC 60603-13; DIN EN 60603-13, POLARIZED

Housing Material :

Polybutylene

Wire Gauge (Min) :

26 AWG

Filter Feature :

No

Orientation :

RIGHT ANGLE

Wire Gauge (Max) :

28 AWG

Body/Shell Style :

PLUG

Number of Poles :

20

Termination :

IDT

Rated Current (Signal) :

2A

Total Number of Contacts :

20

Cable Termination :

IDC

Lead Pitch :

2.54mm

Pbfree Code :

yes

Packaging :

Tray

Voltage - Rated DC :

350V

Feature :

Feed Through, Polarizing Key

Wire/Cable Type :

Ribbon

Reliability :

COMMERCIAL

RoHS Status :

ROHS3 Compliant

UL Flammability Code :

94V-0

Contact Resistance :

20mOhm

Voltage - Rated AC :

350V

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Flammability Rating :

UL94 V-0
