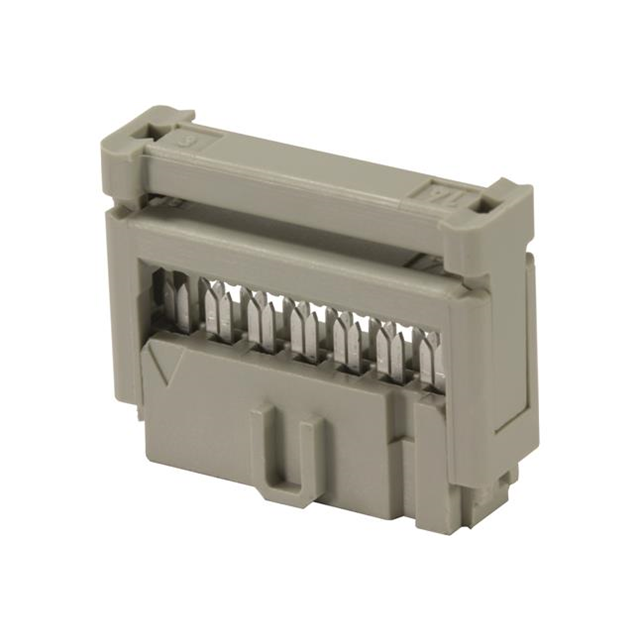

09185206814
- Mfr.Part #
- 09185206814
- Manufacturer
- HARTING
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT 20POS IDC 26-28AWG
- Stock
- 84
- In Stock :
- 84
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- HARTING
- Product Category :
- Free Hanging, Panel Mount
- UL Flammability Code :
- 94V-0
- Reference Standard :
- UL
- Wire Gauge :
- 26-28 AWG
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Wire Gauge (Max) :
- 28 AWG
- Wire Type :
- Ribbon Cable
- Option :
- GENERAL PURPOSE
- Number of Positions :
- 20
- Pbfree Code :
- yes
- Rated Current (Signal) :
- 2A
- Insulation Material :
- PBTP 30% FIBRE ENHANCED
- Contact Design :
- PREASSEM CONN
- RoHS Status :
- ROHS3 Compliant
- Mixed Contacts :
- No
- Additional Feature :
- STANDARD: IEC 60603-13; DIN EN 60603-13, POLARIZED
- Pitch :
- 0.100 2.54mm
- Mount :
- Free Hanging
- Wire/Cable Type :
- Ribbon
- Body/Shell Style :
- PLUG
- Number of Rows :
- 2
- Series :
- SEK
- Contact Material :
- NOT SPECIFIED
- Polarization Key :
- CENTER
- Cable Termination :
- IDC
- Mounting Type :
- Free Hanging (In-Line)
- Packaging :
- Bulk
- Total Number of Contacts :
- 20
- Feature :
- Closed End, Polarizing Key, Strain Relief
- Contact Finish - Mating :
- NOT SPECIFIED
- Operating Temperature (Min) :
- -55°C
- Wire Gauge (Min) :
- 26 AWG
- Reliability :
- COMMERCIAL
- MIL Conformance :
- No
- Filter Feature :
- No
- DIN Conformance :
- yes
- Body Length or Diameter :
- 1.181 inch
- IEC Conformance :
- yes
- Connector Type :
- Receptacle
- Termination Type :
- IDC
- Contact Type :
- Female Socket
- Row Spacing :
- 0.100 (2.54mm)
- Factory Lead Time :
- 7 Weeks
- Insulation Resistance :
- 1000000000Ohm
