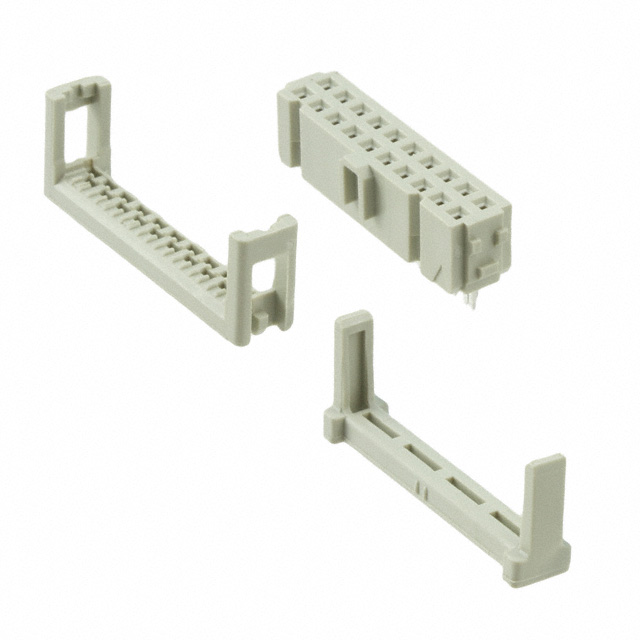

09185206813

Manufacturer :

HARTING

Product Category :

Free Hanging, Panel Mount

Filter Feature :

No

Total Number of Contacts :

20

Contact Resistance :

20mOhm

Depth :

7.2mm

Contact Current Rating :

1A

Width :

30mm

RoHS Status :

ROHS3 Compliant

Test Voltage :

500V

Orientation :

RIGHT ANGLE

Reference Standard :

UL

Mounting Type :

Free Hanging (In-Line)

Wire Gauge :

26-28 AWG

Insulation Material :

PBTP 30% FIBRE ENHANCED

Wire Type :

Ribbon Cable

Voltage - Rated DC :

350V

Feature :

Feed Through, Polarizing Key, Strain Relief

Min Operating Temperature :

-40°C

Polarization Key :

CENTER

Packaging :

Tray

Contact Finish - Mating :

NOT SPECIFIED

MIL Conformance :

No

Mixed Contacts :

No

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Wire/Cable Type :

Ribbon

Contact Gender :

FEMALE

Body/Shell Style :

PLUG

Row Spacing :

0.100 (2.54mm)

Current Rating :

2A

Height :

14.5mm

Additional Feature :

STANDARD: IEC 60603-13; DIN EN 60603-13, POLARIZED

Rated Current (Signal) :

2A

Option :

GENERAL PURPOSE

Contact Type :

Female Socket

Max Operating Temperature :

105°C

Wire Gauge (Max) :

28 AWG

Reliability :

COMMERCIAL

Connector Type :

Receptacle

DIN Conformance :

No

REACH SVHC :

No SVHC

Pbfree Code :

yes

UL Flammability Code :

94V-0

Pitch :

0.100 2.54mm

Contact Material :

Brass

Number of Poles :

20

Length :

30mm

Cable Termination :

IDC

Lead Pitch :

2.54mm

IEC Conformance :

No

Number of Rows :

2

Flammability Rating :

UL94 V-0

Factory Lead Time :

4 Weeks

Contact Plating :

Gold

Mount :

Cable, Free Hanging

Voltage - Rated AC :

350V

Series :

SEK

Termination :

IDT

Insulation Resistance :

1GOhm

Color :

Grey

Wire Gauge (Min) :

26 AWG
