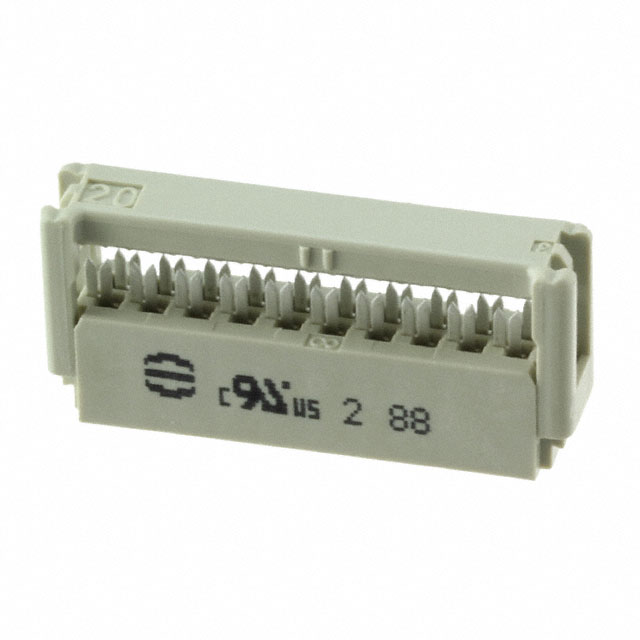

09185206803

Manufacturer :

HARTING

Product Category :

Free Hanging, Panel Mount

Number of Rows :

2

Contact Gender :

FEMALE

Length :

30mm

RoHS Status :

ROHS3 Compliant

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Depth :

6.1mm

Pitch :

0.100 2.54mm

REACH SVHC :

No SVHC

Polarization Key :

CENTER

Contact Type :

Female Socket

Contact Finish - Mating :

NOT SPECIFIED

Factory Lead Time :

4 Weeks

Row Spacing :

0.100 (2.54mm)

Body/Shell Style :

PLUG

Total Number of Contacts :

20

Contact Material :

NOT SPECIFIED

Current Rating :

2A

Orientation :

RIGHT ANGLE

Lead Pitch :

2.54mm

Packaging :

Bulk

Termination :

IDT

Wire/Cable Type :

Ribbon

Mount :

Cable, Free Hanging

Reliability :

COMMERCIAL

Pbfree Code :

yes

Series :

SEK

Additional Feature :

STANDARD: IEC 60603-13; DIN EN 60603-13, POLARIZED

Number of Poles :

20

Reference Standard :

UL

Filter Feature :

No

Connector Type :

Receptacle

Rated Current (Signal) :

2A

Contact Plating :

Gold

Wire Gauge :

26-28 AWG

IEC Conformance :

yes

Wire Gauge (Min) :

26 AWG

Mixed Contacts :

No

UL Flammability Code :

94V-0

Insulation Material :

PBTP 30% FIBRE ENHANCED

Mounting Type :

Free Hanging (In-Line)

Wire Type :

Ribbon Cable

DIN Conformance :

yes

Option :

GENERAL PURPOSE

Wire Gauge (Max) :

28 AWG

Operating Temperature (Min) :

-55°C

Cable Termination :

IDC

MIL Conformance :

No

Insulation Resistance :

1000000000Ohm

Feature :

Feed Through, Polarizing Key
