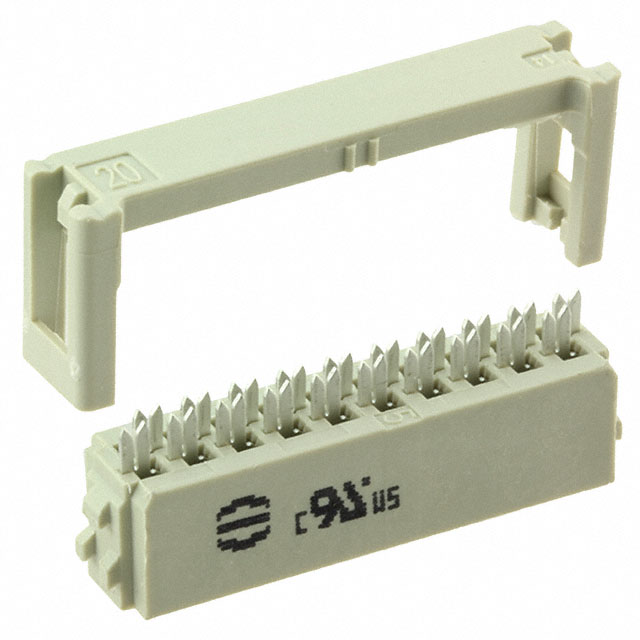

09185205813

Manufacturer :

HARTING

Product Category :

Free Hanging, Panel Mount

DIN Conformance :

yes

Number of Positions :

20

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Insulation Resistance :

1000000000Ohm

Length :

30mm

Current Rating :

2A

Factory Lead Time :

7 Weeks

Contact Finish :

Gold

Contact Design :

PREASSEM CONN

Polarization Key :

CENTER

Contact Type :

Female Socket

Mounting Type :

Free Hanging (In-Line)

Connector Type :

Receptacle

Insulation Material :

PBTP 30% FIBRE ENHANCED

Depth :

7.2mm

Orientation :

RIGHT ANGLE

Wire Gauge (Min) :

26 AWG

Number of Rows :

2

Mount :

Free Hanging

Row Spacing :

0.100 (2.54mm)

ECCN Code :

EAR99

UL Flammability Code :

94V-0

Wire/Cable Type :

Ribbon

Filter Feature :

No

Body/Shell Style :

PLUG

Total Number of Contacts :

20

IEC Conformance :

yes

Operating Temperature (Min) :

-55°C

MIL Conformance :

No

Contact Finish Thickness :

30.0μin 0.76μm

Termination :

IDT

Reference Standard :

UL

HTS Code :

8536.69.40.40

Additional Feature :

STANDARD: IEC 60603-13; DIN EN 60603-13, POLARIZED

Wire Type :

Ribbon Cable

RoHS Status :

ROHS3 Compliant

Pitch :

0.100 2.54mm

Series :

SEK

Rated Current (Signal) :

2A

Plating Thickness :

30μin

Wire Gauge :

26-28 AWG

Wire Gauge (Max) :

28 AWG

REACH SVHC :

No SVHC

Feature :

Feed Through, Polarizing Key, Strain Relief

Contact Material :

NOT SPECIFIED

Packaging :

Bulk

Reliability :

COMMERCIAL

Option :

GENERAL PURPOSE

Mixed Contacts :

No

Cable Termination :

IDC

Pbfree Code :

yes
