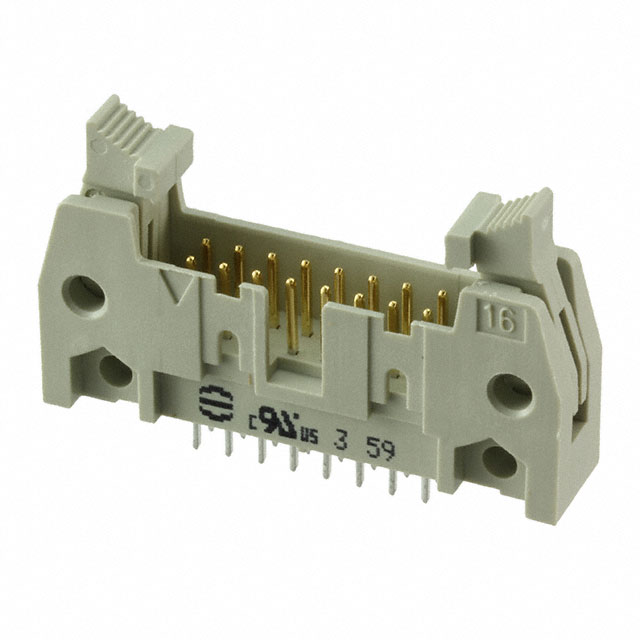

09185167914
Or copy the link below:
- Mfr.Part #
- 09185167914
- Manufacturer
- HARTING
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 16POS 2.54MM
- Stock
- 495
- In Stock ：
- 495
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- HARTING
- Product Category :
- Headers, Male Pins
- Filter Feature :
- No
- IEC Conformance :
- yes
- Contact Length - Post :
- 0.114 2.90mm
- HTS Code :
- 8536.69.40.40
- Contact Plating :
- Gold
- UL Flammability Code :
- 94V-0
- Contact Finish - Post :
- Tin
- Feature :
- Keying Slot, Mounting Flange
- Contact Resistance :
- 20mOhm
- Connector Type :
- Header
- Length :
- 39.9mm
- Contact Material :
- COPPER ALLOY
- Contact Shape :
- Square
- MIL Conformance :
- No
- REACH SVHC :
- No SVHC
- Body Breadth :
- 0.335 inch
- Termination :
- Solder
- Max Current Rating :
- 1A
- Number of Rows :
- 2
- Fastening Type :
- Latch Lock/Eject Hooks, Short
- Voltage - Rated DC :
- 350V
- Mounting Type :
- Through Hole
- Insulation Material :
- Polybutylene Terephthalate (PBT), Glass Filled
- Operating Temperature :
- -55°C~125°C
- Row Spacing - Mating :
- 0.100 (2.54mm)
- Pbfree Code :
- yes
- Depth :
- 8.5mm
- Series :
- SEK
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Factory Lead Time :
- 4 Weeks
- Reliability :
- COMMERCIAL
- Additional Feature :
- STANDARDS: DIN EN 60603-13; IEC 60603-13, POLARIZED
- Number of Poles :
- 16
- Number Of PCB Rows :
- 2
- Overall Contact Length :
- 0.650 16.51mm
- Pitch - Mating :
- 0.100 2.54mm
- Orientation :
- Straight
- Current Rating :
- 1A
- Packaging :
- Bulk
- Housing Material :
- Polybutylene
- Durability :
- 50 Cycles
- Flammability Rating :
- UL94 V-0
- Shrouding :
- Shrouded - 4 Wall
- Mount :
- Through Hole
- RoHS Status :
- ROHS3 Compliant
- Number of Conductors :
- ONE
- Number of Positions Loaded :
- All
- Option :
- GENERAL PURPOSE
- Mixed Contacts :
- No
- DIN Conformance :
- yes
- Insulation Color :
- Gray
- Style :
- Board to Cable/Wire
- Contact Length - Mating :
- 0.228 5.80mm
- ECCN Code :
- EAR99
- Insulation Height :
- 0.681 17.30mm
- Insulation Resistance :
- 1GOhm
- Lead Pitch :
- 2.54mm
- Working Voltage :
- 350V
- Material Flammability Rating :
- UL94 V-0
- Reference Standard :
- UL
- Rated Current (Signal) :
- 2A
- Color :
- Grey
- Mating Contact Pitch :
- 0.1 inch
- Contact Type :
- Male Pin
- Contact Gender :
- Male
- Contact Finish - Mating :
- NOT SPECIFIED
- Polarization Key :
- POLARIZED HOUSING
- PCB Contact Pattern :
- RECTANGULAR
- Voltage - Rated AC :
- 350V
- Datasheets
- 09185167914
SEK Series 2-Row Header Solder Copper Alloy Bulk Through Hole NOT SPECIFIED Polybutylene Terephthalate (PBT), Glass Filled Board to Cable/Wire 0.681 17.30mm Height
09185167914 Overview
Currently, it is packaged in Header.The mounting type of the device is Through Hole.A Bulk case is used to package the product.A product of the SEK Series, it belongs to the range of products of that series.Furthermore, there are other features available, such as STANDARDS: DIN EN 60603-13; IEC 60603-13, POLARIZED, to name a few.A number of features make the Keying Slot, Mounting Flange feature more powerful.Through Hole represents the mounting point for the part.-55°C~125°C Operating Temperature is the default operating temperature for the device.
09185167914 Features
SEK series
09185167914 Applications
There are a lot of HARTING
09185167914 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
