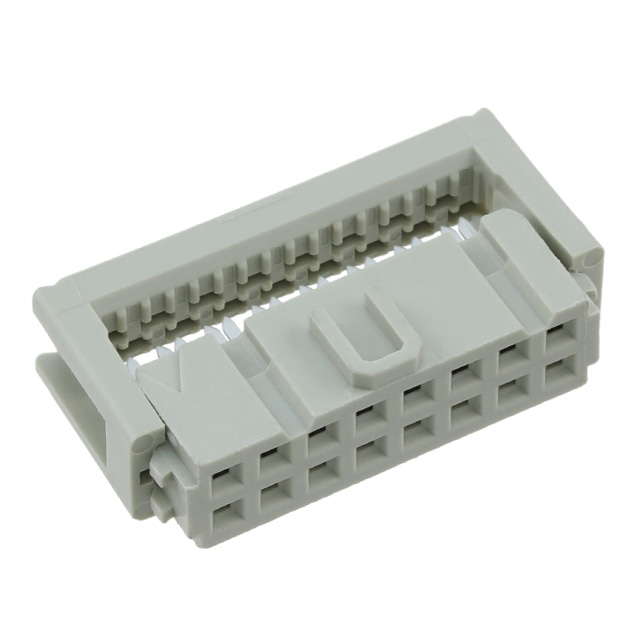

09185167803

Manufacturer :

HARTING

Product Category :

Free Hanging, Panel Mount

Wire Type :

Ribbon Cable

Contact Resistance :

20mOhm

Max Operating Temperature :

125°C

Packaging :

Tray

Mounting Type :

Free Hanging (In-Line)

Mount :

Cable, Free Hanging

Voltage - Rated AC :

350V

Polarization Key :

CENTER

Row Spacing :

0.100 (2.54mm)

Wire/Cable Type :

Ribbon

Pitch :

0.100 2.54mm

DIN Conformance :

yes

Filter Feature :

No

Additional Feature :

STANDARD: IEC 60603-13; DIN EN 60603-13, POLARIZED

Durability :

50 Cycles

RoHS Status :

ROHS3 Compliant

Contact Current Rating :

1A

Contact Gender :

FEMALE

Voltage - Rated DC :

350V

Mixed Contacts :

No

Min Operating Temperature :

-40°C

Contact Type :

Female Socket

Lead Pitch :

2.54mm

Length :

24.9mm

Option :

GENERAL PURPOSE

Pbfree Code :

yes

Current Rating :

2A

Max Current Rating :

1A

Contact Material :

Brass

Color :

Grey

Cable Termination :

IDC

Total Number of Contacts :

16

Rated Current (Signal) :

2A

Wire Gauge (Min) :

26 AWG

Wire Gauge (Max) :

28 AWG

Feature :

Feed Through, Polarizing Key

Series :

SEK

Body/Shell Style :

PLUG

Factory Lead Time :

4 Weeks

MIL Conformance :

No

Insulation Resistance :

1GOhm

UL Flammability Code :

94V-0

Connector Type :

Receptacle

Contact Plating :

Gold

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Number of Poles :

16

Reference Standard :

UL

Wire Gauge :

26-28 AWG

Termination :

IDT

Number of Rows :

2

IEC Conformance :

yes

Orientation :

RIGHT ANGLE

REACH SVHC :

No SVHC

Contact Finish - Mating :

NOT SPECIFIED

Depth :

7.2mm

Reliability :

COMMERCIAL

Flammability Rating :

UL94 V-0

Housing Material :

Polybutylene
