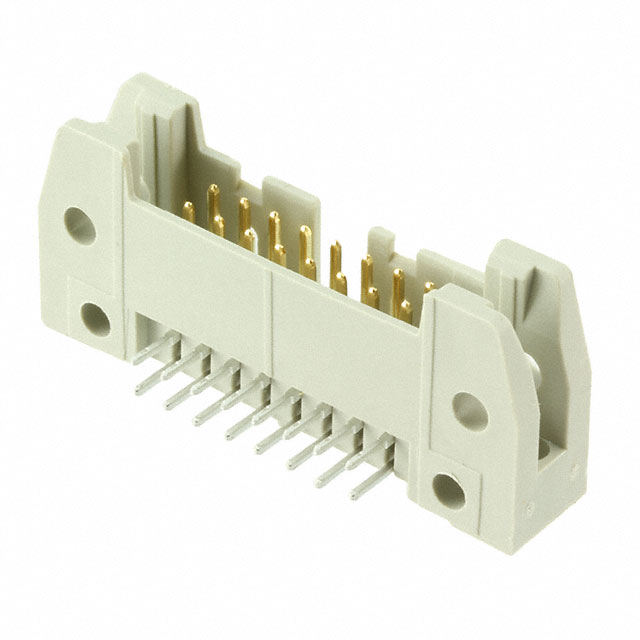

09185166923

Manufacturer :

HARTING

Product Category :

Headers, Male Pins

Rated Current (Signal) :

2A

Contact Type :

Male Pin

Shrouding :

Shrouded - 4 Wall

PCB Contact Pattern :

RECTANGULAR

Contact Length - Mating :

0.240 6.10mm

Termination :

Solder

Insulation Resistance :

1000000000Ohm

Packaging :

Tray

Pbfree Code :

yes

Number of Rows :

2

Body Length or Diameter :

1.571 inch

Number of Positions Loaded :

All

Mounting Type :

Through Hole, Right Angle

Feature :

Keying Slot, Mounting Flange

Mixed Contacts :

No

Number of Conductors :

ONE

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Pitch - Mating :

0.100 2.54mm

ECCN Code :

EAR99

Filter Feature :

No

Color :

Grey

Fastening Type :

Push-Pull

MIL Conformance :

No

Contact Gender :

Male

Factory Lead Time :

4 Weeks

Reliability :

COMMERCIAL

UL Flammability Code :

94V-0

Current Rating :

2A

Contact Shape :

Square

RoHS Status :

ROHS3 Compliant

Operating Temperature :

-55°C~125°C

Material Flammability Rating :

UL94 V-0

Contact Material :

COPPER ALLOY

Insulation Height :

0.335 8.51mm

HTS Code :

8536.69.40.40

Connector Type :

Header

DIN Conformance :

yes

Insulation Color :

Gray

Option :

GENERAL PURPOSE

Style :

Board to Cable/Wire

Housing Material :

Polyester

Orientation :

RIGHT ANGLE

Number of Positions :

16

Body Depth :

0.681 inch

Number Of PCB Rows :

2

Additional Feature :

STANDARDS: IEC 60603-13; DIN EN 60603-13, POLARIZED

Length - Termination :

0.114 inch

Mating Contact Pitch :

0.1 inch

Insulation Material :

Polybutylene Terephthalate (PBT), Glass Filled

Body Breadth :

0.335 inch

Row Spacing - Mating :

0.100 (2.54mm)

Polarization Key :

POLARIZED HOUSING

Contact Finish - Mating :

NOT SPECIFIED

Mount :

Through Hole

IEC Conformance :

yes

Contact Length - Post :

0.114 2.90mm

Reference Standard :

UL

Series :

SEK
