09185166914
- Mfr.Part #
- 09185166914
- Manufacturer
- HARTING
- Package / Case
- Datasheet
- Download
- Description

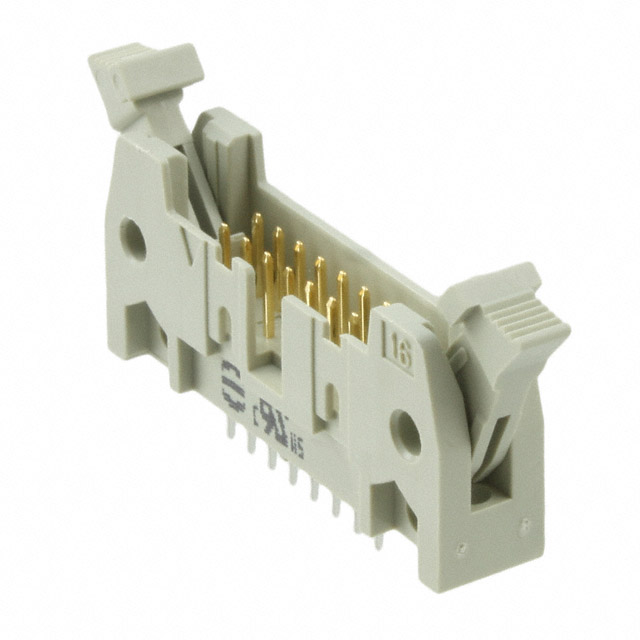

- CONN HEADER VERT 16POS 2.54MM
- Stock
- 130
- In Stock :
- 130
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- HARTING
- Product Category :
- Headers, Male Pins
- Housing Material :
- Polybutylene
- Contact Material :
- COPPER ALLOY
- UL Flammability Code :
- 94V-0
- Row Spacing - Mating :
- 0.100 (2.54mm)
- Fastening Type :
- Latch Lock/Eject Hooks, Short
- Mount :
- Through Hole
- Insulation Resistance :
- 1000000000Ohm
- Current Rating :
- 1A
- Style :
- Board to Cable/Wire
- Packaging :
- Bulk
- Pitch - Mating :
- 0.100 2.54mm
- Connector Type :
- Header
- Contact Finish - Post :
- Tin
- Number of Positions Loaded :
- All
- Shrouding :
- Shrouded - 4 Wall
- Pbfree Code :
- yes
- MIL Conformance :
- No
- Body Breadth :
- 0.335 inch
- Contact Shape :
- Square
- Lead Length :
- 29mm
- Additional Feature :
- STANDARDS: DIN EN 60603-13; IEC 60603-13, POLARIZED
- Reference Standard :
- UL
- Mating Contact Pitch :
- 0.1 inch
- Feature :
- Keying Slot, Mounting Flange
- Operating Temperature :
- -55°C~125°C
- Mounting Type :
- Through Hole
- Contact Plating :
- Gold
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Rated Current (Signal) :
- 2A
- Option :
- GENERAL PURPOSE
- Insulation Material :
- Polybutylene Terephthalate (PBT), Glass Filled
- PCB Contact Pattern :
- RECTANGULAR
- Filter Feature :
- No
- Orientation :
- Straight
- Contact Gender :
- Male
- Termination :
- Solder
- Reliability :
- COMMERCIAL
- Factory Lead Time :
- 4 Weeks
- Series :
- SEK
- Number Of PCB Rows :
- 2
- Number of Positions :
- 16
- Depth :
- 8.5mm
- Manufacturer Package Identifier :
- TB 09 18 516 X91X
- Polarization Key :
- POLARIZED HOUSING
- Material Flammability Rating :
- UL94 V-0
- Insulation Color :
- Gray
- Insulation Height :
- 0.681 17.30mm
- Contact Finish - Mating :
- NOT SPECIFIED
- REACH SVHC :
- No SVHC
- Number of Rows :
- 2
- Mixed Contacts :
- No
- Contact Resistance :
- 20mOhm
- DIN Conformance :
- yes
- Color :
- Grey
- IEC Conformance :
- yes
- RoHS Status :
- ROHS3 Compliant
- Contact Length - Mating :
- 0.228 5.80mm
- Max Current Rating :
- 1A
- Length :
- 39.9mm
- Number of Conductors :
- ONE
- Contact Type :
- Male Pin
- Contact Length - Post :
- 0.114 2.90mm
- Overall Contact Length :
- 0.650 16.51mm
- Datasheets
- 09185166914
09185166914 Documents

SEK Series 2-Row Header Solder Copper Alloy Bulk Through Hole NOT SPECIFIED Polybutylene Terephthalate (PBT), Glass Filled 16-Position Board to Cable/Wire 0.681 17.30mm Height
09185166914 Overview
The product comes in a package of Header.Through Hole is the type of mounting for the device.To package the product, a Bulk case is used.The product is a member of the SEK Series.Among other features are STANDARDS: DIN EN 60603-13; IEC 60603-13, POLARIZED, to name only a few.It is more powerful in many ways due to its Keying Slot, Mounting Flange feature.It is mounted by Through Hole.It operates at an operating temperature of -55°C~125°C.
