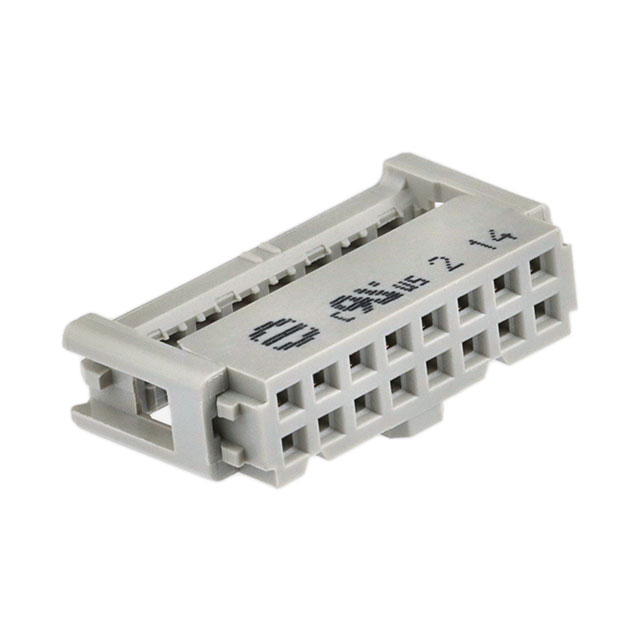

09185166814

Manufacturer :

HARTING

Product Category :

Free Hanging, Panel Mount

Series :

SEK

Reference Standard :

UL

Insulation Resistance :

1000000000Ohm

Reliability :

COMMERCIAL

Operating Temperature (Min) :

-55°C

Contact Design :

PREASSEM CONN

Contact Finish - Mating :

NOT SPECIFIED

UL Flammability Code :

94V-0

Option :

GENERAL PURPOSE

Connector Type :

Receptacle

Insulation Material :

PBTP 30% FIBRE ENHANCED

Contact Type :

Female Socket

Filter Feature :

No

Mount :

Free Hanging

Termination Type :

IDC

Body Length or Diameter :

0.98 inch

Pitch :

0.100 2.54mm

Packaging :

Bulk

HTS Code :

8536.69.40.40

MIL Conformance :

No

Wire Gauge (Min) :

26 AWG

Pbfree Code :

yes

ECCN Code :

EAR99

Feature :

Closed End, Polarizing Key, Strain Relief

Wire Gauge :

26-28 AWG

IEC Conformance :

yes

Wire Gauge (Max) :

28 AWG

Cable Termination :

IDC

Number of Positions :

16

Wire Type :

Ribbon Cable

Factory Lead Time :

7 Weeks

Polarization Key :

CENTER

Wire/Cable Type :

Ribbon

Body/Shell Style :

PLUG

Mounting Type :

Free Hanging (In-Line)

Number of Rows :

2

RoHS Status :

ROHS3 Compliant

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Row Spacing :

0.100 (2.54mm)

DIN Conformance :

yes

Mixed Contacts :

No

Rated Current (Signal) :

2A

Contact Material :

NOT SPECIFIED

Total Number of Contacts :

16

Additional Feature :

STANDARD: IEC 60603-13; DIN EN 60603-13, POLARIZED
