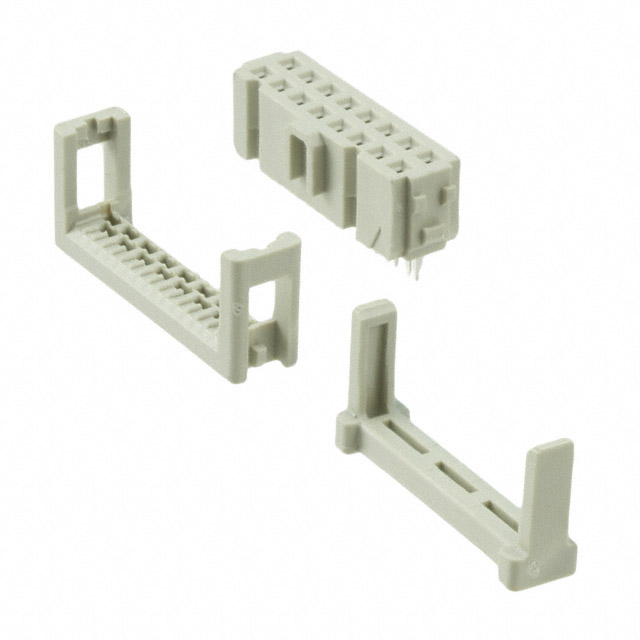

09185166813

Manufacturer :

HARTING

Product Category :

Free Hanging, Panel Mount

Voltage - Rated DC :

350V

Voltage - Rated AC :

350V

Wire Type :

Ribbon Cable

Total Number of Contacts :

16

Width :

24.9mm

Feature :

Feed Through, Polarizing Key, Strain Relief

Number of Poles :

16

Lead Pitch :

2.54mm

Max Operating Temperature :

105°C

DIN Conformance :

No

Termination :

IDT

Number of Rows :

2

Body/Shell Style :

PLUG

UL Flammability Code :

94V-0

Depth :

7.2mm

Filter Feature :

No

REACH SVHC :

No SVHC

Wire Gauge :

26-28 AWG

Contact Current Rating :

1A

Length :

24.9mm

Flammability Rating :

UL94 V-0

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Connector Type :

Receptacle

Wire Gauge (Max) :

28 AWG

Contact Material :

Brass

Contact Plating :

Gold

Test Voltage :

500V

Height :

14.5mm

Packaging :

Tray

Row Spacing :

0.100 (2.54mm)

Min Operating Temperature :

-40°C

Contact Finish - Mating :

NOT SPECIFIED

Option :

GENERAL PURPOSE

Orientation :

RIGHT ANGLE

Rated Current (Signal) :

2A

Series :

SEK

Polarization Key :

CENTER

Contact Resistance :

20mOhm

MIL Conformance :

No

Mixed Contacts :

No

Pbfree Code :

yes

Contact Type :

Female Socket

Cable Termination :

IDC

Mount :

Cable, Free Hanging

ECCN Code :

EAR99

HTS Code :

8536.69.40.40

Color :

Grey

Factory Lead Time :

4 Weeks

IEC Conformance :

No

RoHS Status :

ROHS3 Compliant

Contact Design :

PREASSEM CONN

Wire/Cable Type :

Ribbon

Additional Feature :

STANDARD: IEC 60603-13; DIN EN 60603-13, POLARIZED

Wire Gauge (Min) :

26 AWG

Insulation Resistance :

1GOhm

Mounting Type :

Free Hanging (In-Line)

Housing Material :

Plastic

Pitch :

0.100 2.54mm

Reference Standard :

UL

Reliability :

COMMERCIAL

Current Rating :

2A
