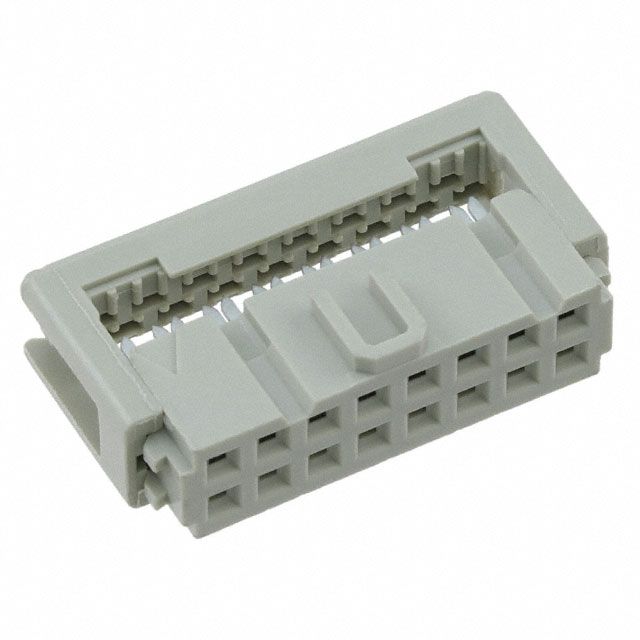

09185166804

Manufacturer :

HARTING

Product Category :

Free Hanging, Panel Mount

Voltage - Rated :

320V

Orientation :

Straight

Current Rating :

2A

Contact Material :

Thermoplastic

Number of Rows :

2

Insulation Resistance :

1000000000Ohm

Feature :

Closed End, Polarizing Key

UL Flammability Code :

94V-0

ECCN Code :

EAR99

MIL Conformance :

No

Reference Standard :

UL

Rated Current (Signal) :

2A

Reliability :

COMMERCIAL

Contact Finish - Mating :

NOT SPECIFIED

Number of Positions :

16

Series :

SEK

Wire Gauge :

26-28 AWG

Contact Type :

Female Socket

Packaging :

Bulk

RoHS Status :

ROHS3 Compliant

Pitch :

0.100 2.54mm

Insulation Material :

PBTP 30% FIBRE ENHANCED

Wire Type :

Ribbon Cable

Operating Temperature (Min) :

-55°C

Mixed Contacts :

No

Termination Type :

IDC

Filter Feature :

No

IEC Conformance :

yes

Contact Gender :

FEMALE

Body/Shell Style :

PLUG

Factory Lead Time :

7 Weeks

Polarization Key :

CENTER

Option :

GENERAL PURPOSE

Cable Termination :

IDC

Row Spacing :

0.100 (2.54mm)

Mounting Type :

Free Hanging (In-Line)

Connector Type :

Receptacle

Mount :

Free Hanging

Additional Feature :

STANDARD: IEC 60603-13; DIN EN 60603-13, POLARIZED

Body Length or Diameter :

0.98 inch

Wire/Cable Type :

Ribbon

Total Number of Contacts :

16

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

DIN Conformance :

yes

Pbfree Code :

yes

HTS Code :

8536.69.40.40

Wire Gauge (Max) :

28 AWG

Wire Gauge (Min) :

26 AWG

REACH SVHC :

No SVHC
