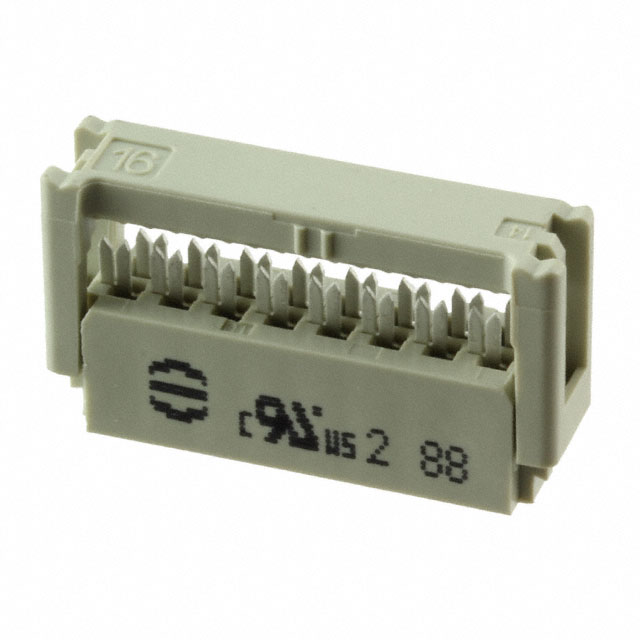

09185166803

Manufacturer :

HARTING

Product Category :

Free Hanging, Panel Mount

Length :

24.9mm

Packaging :

Bulk

Insulation Material :

PBTP 30% FIBRE ENHANCED

Number of Contacts :

16

Mixed Contacts :

No

IEC Conformance :

yes

Additional Feature :

STANDARD: IEC 60603-13; DIN EN 60603-13, POLARIZED

Reliability :

COMMERCIAL

Wire Gauge (Min) :

26 AWG

Contact Design :

PREASSEM CONN

Body/Shell Style :

PLUG

Connector Type :

Receptacle

Series :

SEK

Option :

GENERAL PURPOSE

Insulation Resistance :

1000000000Ohm

Contact Type :

Female Socket

Contact Material :

NOT SPECIFIED

Polarization Key :

CENTER

Filter Feature :

No

Wire Gauge (Max) :

28 AWG

RoHS Status :

ROHS3 Compliant

Depth :

7.2mm

Wire Type :

Ribbon Cable

Mount :

Cable, Free Hanging

Number of Rows :

2

Cable Termination :

IDC

Row Spacing :

0.100 (2.54mm)

Orientation :

RIGHT ANGLE

Mounting Type :

Free Hanging (In-Line)

Pbfree Code :

yes

MIL Conformance :

No

Reference Standard :

UL

Rated Current (Signal) :

2A

Pitch :

0.100 2.54mm

HTS Code :

8536.69.40.40

Termination :

IDT

Lead Pitch :

2.54mm

Wire Gauge :

26-28 AWG

UL Flammability Code :

94V-0

Feature :

Feed Through, Polarizing Key

Operating Temperature (Min) :

-55°C

Wire/Cable Type :

Ribbon

Factory Lead Time :

4 Weeks

ECCN Code :

EAR99

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Contact Finish - Mating :

NOT SPECIFIED

REACH SVHC :

No SVHC

Contact Plating :

Gold

DIN Conformance :

yes
