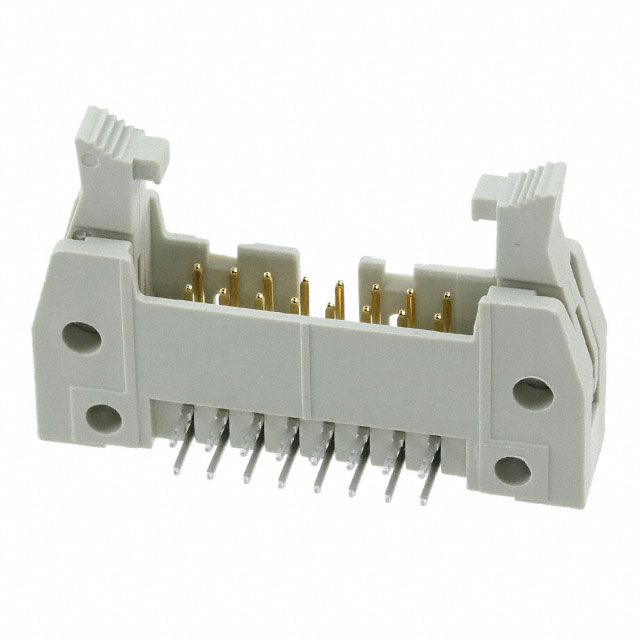

09185165903

Manufacturer :

HARTING

Product Category :

Headers, Male Pins

Contact Finish Thickness - Mating :

30.0μin 0.76μm

RoHS Status :

ROHS3 Compliant

Number of Positions Loaded :

All

Number of Conductors :

ONE

Material Flammability Rating :

UL94 V-0

Pitch - Mating :

0.100 2.54mm

Fastening Type :

Latch Lock/Eject Hooks, Long

Number Of PCB Rows :

2

PCB Contact Pattern :

RECTANGULAR

Shrouding :

Shrouded - 4 Wall

Body Breadth :

0.335 inch

Polarization Key :

POLARIZED HOUSING

Insulation Material :

Polybutylene Terephthalate (PBT), Glass Filled

Contact Finish - Mating :

Gold

Number of Rows :

2

Connector Type :

Header

Style :

Board to Cable/Wire

Body Depth :

0.681 inch

Contact Length - Mating :

0.240 6.10mm

Contact Length - Post :

0.114 2.90mm

Filter Feature :

No

Additional Feature :

STANDARDS: IEC 60603-13; DIN EN 60603-13, POLARIZED

Plating Thickness :

30μin

Length - Termination :

0.114 inch

IEC Conformance :

yes

Color :

Grey

Mounting Type :

Through Hole, Right Angle

Pbfree Code :

yes

Insulation Color :

Gray

Mixed Contacts :

No

Contact Finish - Post :

Tin

MIL Conformance :

No

Termination :

Solder

Row Spacing - Mating :

0.100 (2.54mm)

Operating Temperature :

-55°C~125°C

Feature :

Keying Slot, Mounting Flange

Packaging :

Bulk

Contact Shape :

Square

Insulation Height :

0.335 8.51mm

Series :

SEK

Contact Type :

Male Pin

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

UL Flammability Code :

94V-0

Rated Current (Signal) :

2A

Number of Positions :

16

Mount :

Through Hole

Option :

GENERAL PURPOSE

Contact Material :

COPPER ALLOY

DIN Conformance :

yes

Insulation Resistance :

1000000000Ohm

Mating Contact Pitch :

0.1 inch

Reliability :

COMMERCIAL

Factory Lead Time :

7 Weeks

Reference Standard :

UL
