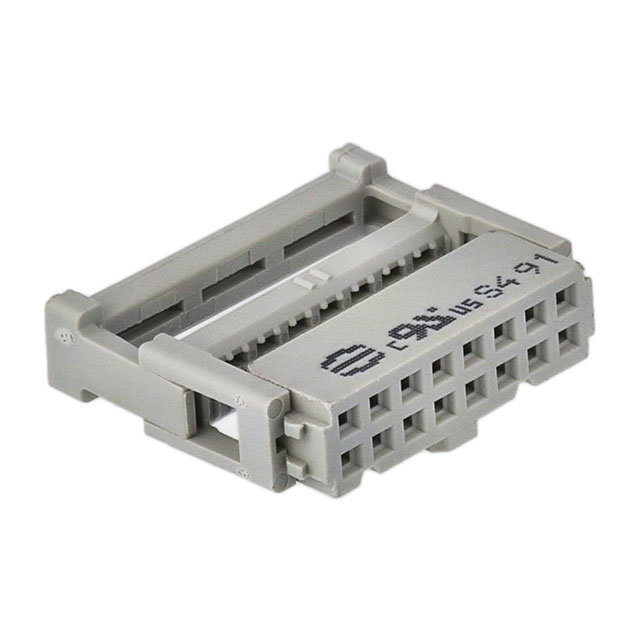

09185165813

Manufacturer :

HARTING

Product Category :

Free Hanging, Panel Mount

Body/Shell Style :

PLUG

Orientation :

RIGHT ANGLE

Mount :

Free Hanging

Wire Gauge :

26-28 AWG

HTS Code :

8536.69.40.40

Pitch :

0.100 2.54mm

Mixed Contacts :

No

Contact Type :

Female Socket

Wire Gauge (Min) :

26 AWG

Row Spacing :

0.100 (2.54mm)

MIL Conformance :

No

Number of Positions :

16

Contact Material :

NOT SPECIFIED

Wire Gauge (Max) :

28 AWG

Mounting Type :

Free Hanging (In-Line)

Contact Finish Thickness :

30.0μin 0.76μm

Additional Feature :

STANDARD: IEC 60603-13; DIN EN 60603-13, POLARIZED

Contact Finish :

Gold

Factory Lead Time :

7 Weeks

Length :

24.9mm

Polarization Key :

CENTER

Contact Design :

PREASSEM CONN

Filter Feature :

No

DIN Conformance :

yes

Wire/Cable Type :

Ribbon

IEC Conformance :

yes

Insulation Resistance :

1000000000Ohm

Operating Temperature (Min) :

-55°C

Reliability :

COMMERCIAL

Plating Thickness :

30μin

Packaging :

Bulk

Connector Type :

Receptacle

Insulation Material :

PBTP 30% FIBRE ENHANCED

Series :

SEK

RoHS Status :

ROHS3 Compliant

Option :

GENERAL PURPOSE

Pbfree Code :

yes

Feature :

Feed Through, Polarizing Key, Strain Relief

UL Flammability Code :

94V-0

Wire Type :

Ribbon Cable

Number of Rows :

2

Termination :

IDT

ECCN Code :

EAR99

Depth :

7.2mm

Reference Standard :

UL

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Rated Current (Signal) :

2A

Cable Termination :

IDC

Total Number of Contacts :

16
