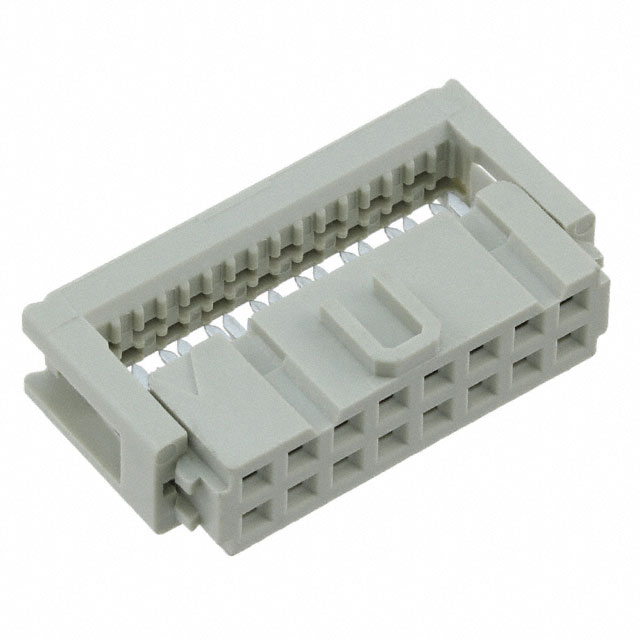

09185165803

Manufacturer :

HARTING

Product Category :

Free Hanging, Panel Mount

Mixed Contacts :

No

Contact Material :

NOT SPECIFIED

Wire Type :

Ribbon Cable

IEC Conformance :

yes

Pbfree Code :

yes

Filter Feature :

No

Total Number of Contacts :

16

Cable Termination :

IDC

Connector Type :

Receptacle

Packaging :

Bulk

HTS Code :

8536.69.40.40

Polarization Key :

CENTER

Wire Gauge (Max) :

28 AWG

Contact Finish :

Gold

Factory Lead Time :

7 Weeks

Contact Finish Thickness :

30.0μin 0.76μm

Mount :

Free Hanging

Current Rating :

2A

Orientation :

Straight

Additional Feature :

STANDARD: IEC 60603-13; DIN EN 60603-13, POLARIZED

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Row Spacing :

0.100 (2.54mm)

Wire Gauge :

26-28 AWG

Feature :

Feed Through, Polarizing Key

Contact Type :

Female Socket

Pitch :

0.100 2.54mm

Rated Current (Signal) :

2A

Mounting Type :

Free Hanging (In-Line)

Wire Gauge (Min) :

26 AWG

Body Length or Diameter :

0.98 inch

Gender :

FEMALE

Body/Shell Style :

PLUG

DIN Conformance :

yes

Termination Type :

IDC

Reliability :

COMMERCIAL

Insulation Resistance :

1000000000Ohm

Contact Design :

PREASSEM CONN

Option :

GENERAL PURPOSE

Insulation Material :

PBTP 30% FIBRE ENHANCED

Reference Standard :

UL

Plating Thickness :

30μin

MIL Conformance :

No

Number of Rows :

2

Series :

SEK

RoHS Status :

ROHS3 Compliant

ECCN Code :

EAR99

Operating Temperature (Min) :

-55°C

Number of Positions :

16

UL Flammability Code :

94V-0

Wire/Cable Type :

Ribbon
