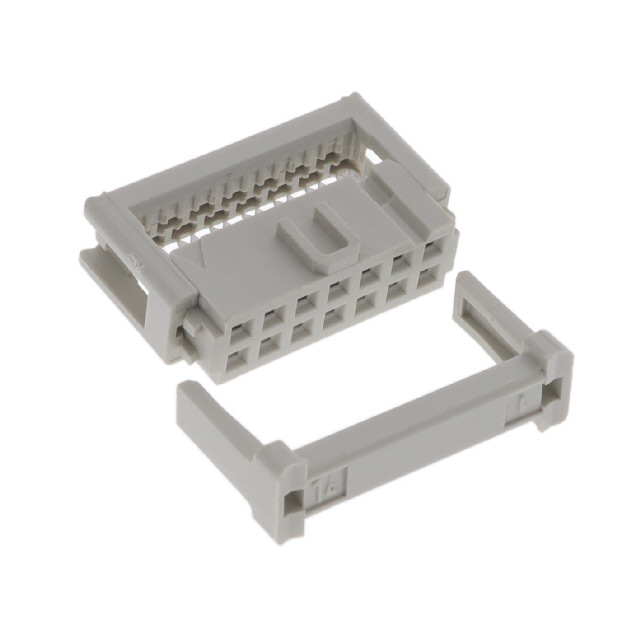

09185147813
- Mfr.Part #
- 09185147813
- Manufacturer
- HARTING
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT 14POS IDC 26-28AWG
- Stock
- 8
- In Stock :
- 8
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- HARTING
- Product Category :
- Free Hanging, Panel Mount
- Insulation Resistance :
- 1GOhm
- Row Spacing :
- 0.100 (2.54mm)
- Rated Current (Signal) :
- 2A
- Mount :
- Cable, Free Hanging
- Current Rating :
- 1A
- Body/Shell Style :
- PLUG
- Orientation :
- RIGHT ANGLE
- Wire Gauge (Max) :
- 28 AWG
- Polarization Key :
- CENTER
- DIN Conformance :
- yes
- Connector Type :
- Receptacle
- Feature :
- Feed Through, Polarizing Key, Strain Relief
- Min Operating Temperature :
- -40°C
- Durability :
- 50 Cycles
- Series :
- SEK
- Additional Feature :
- STANDARD: IEC 60603-13; DIN EN 60603-13, POLARIZED
- Wire/Cable Type :
- Ribbon
- Wire Gauge :
- 26-28 AWG
- Housing Material :
- Polybutylene
- Pbfree Code :
- yes
- REACH SVHC :
- No SVHC
- Termination :
- IDT
- Max Operating Temperature :
- 125°C
- Contact Finish - Mating :
- NOT SPECIFIED
- Length :
- 22.4mm
- Contact Material :
- Brass
- Option :
- GENERAL PURPOSE
- Wire Gauge (Min) :
- 26 AWG
- Number of Rows :
- 2
- Contact Design :
- PREASSEM CONN
- Contact Resistance :
- 20mOhm
- Max Current Rating :
- 1A
- Total Number of Contacts :
- 14
- Mounting Type :
- Free Hanging (In-Line)
- Factory Lead Time :
- 4 Weeks
- Voltage - Rated AC :
- 350V
- Lead Pitch :
- 2.54mm
- IEC Conformance :
- yes
- Contact Type :
- Female Socket
- Contact Plating :
- Gold
- Reliability :
- COMMERCIAL
- Depth :
- 7.2mm
- Color :
- Grey
- Flammability Rating :
- UL94 V-0
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- RoHS Status :
- ROHS3 Compliant
- Pitch :
- 0.100 2.54mm
- UL Flammability Code :
- 94V-0
- Cable Termination :
- IDC
- Voltage - Rated DC :
- 350V
- Packaging :
- Bulk
- Wire Type :
- Ribbon Cable
- Contact Current Rating :
- 1A
- MIL Conformance :
- No
- Number of Poles :
- 14
- Filter Feature :
- No
- Reference Standard :
- UL
- Mixed Contacts :
- No
- Datasheets
- 09185147813
