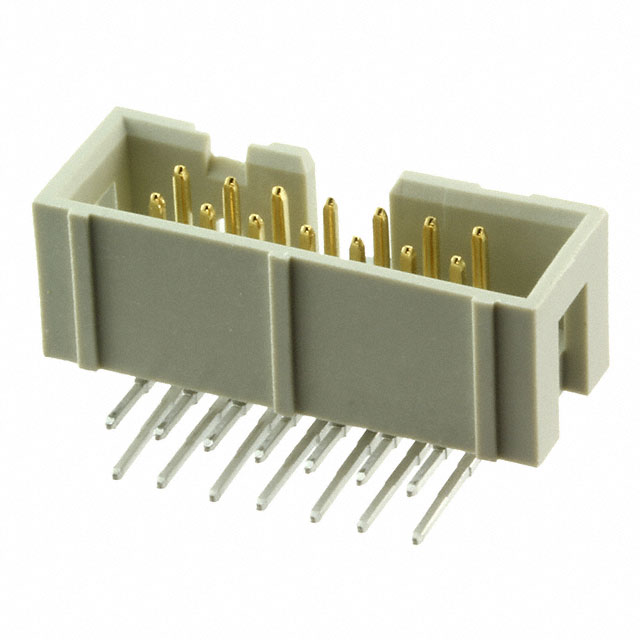

09185147323

Manufacturer :

HARTING

Product Category :

Headers, Male Pins

Mating Contact Pitch :

0.1 inch

Contact Length - Post :

0.114 2.90mm

Durability :

50 Cycles

UL Flammability Code :

94V-0

Contact Plating :

Gold

Contact Length - Mating :

0.242 6.15mm

Fastening Type :

Latch Holder

Pbfree Code :

yes

Mount :

Through Hole

Number Of PCB Rows :

2

Material Flammability Rating :

UL94 V-0

IEC Conformance :

yes

Voltage - Rated AC :

350V

Option :

GENERAL PURPOSE

Factory Lead Time :

10 Weeks

Number of Positions Loaded :

All

Mounting Type :

Through Hole, Right Angle

Mixed Contacts :

No

Style :

Board to Cable/Wire

Insulation Height :

0.366 9.30mm

Number of Rows :

2

Gender :

Male

Insulation Material :

Polybutylene Terephthalate (PBT), Glass Filled

Lead Pitch :

2.54mm

PCB Contact Pattern :

RECTANGULAR

RoHS Status :

ROHS3 Compliant

Filter Feature :

No

DIN Conformance :

yes

Contact Material :

COPPER ALLOY

Number of Poles :

14

Reference Standard :

UL

Connector Type :

Header

Shrouding :

Shrouded - 4 Wall

Flammability Rating :

UL94 V-0

Length - Tail :

2.9mm

Current Rating :

1A

Color :

Grey

Lead Length :

29mm

Series :

SEK

Polarization Key :

CTR W/GUIDE SLOTS

Number of Conductors :

ONE

Hole Diameter :

900 μm

Voltage - Rated DC :

350V

Packaging :

Tray

Additional Feature :

STANDARDS: DIN EN 60603-13; IEC 60603-13

Insulation Resistance :

1GOhm

Feature :

Keying Slot

Pitch - Mating :

0.100 2.54mm

Contact Type :

Male Pin

Row Spacing - Mating :

0.100 (2.54mm)

Working Voltage :

350V

Insulation Color :

Gray

REACH SVHC :

No SVHC

Orientation :

RIGHT ANGLE

Dielectric Withstanding Voltage :

1000VAC V

MIL Conformance :

No

Operating Temperature :

-55°C~125°C

Reliability :

COMMERCIAL

Contact Finish - Mating :

NOT SPECIFIED

Contact Resistance :

20mOhm

Length :

25.4mm

Rated Current (Signal) :

1A

Depth :

11.99mm

Termination :

Solder

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Contact Shape :

Square
